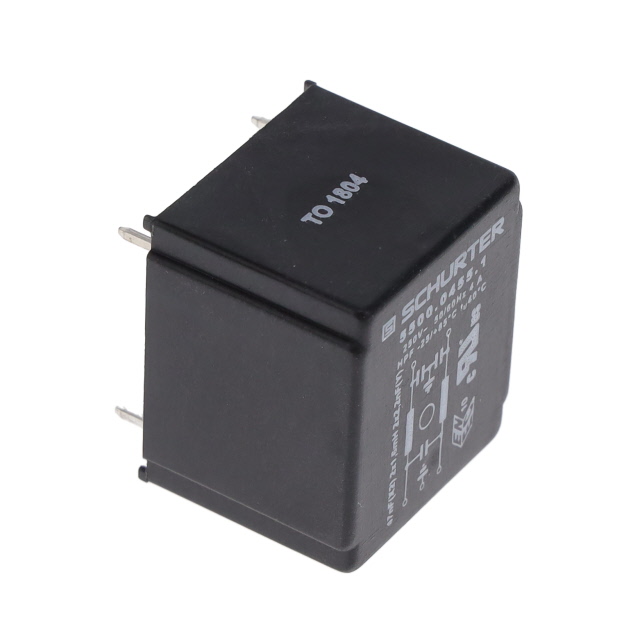

5500.0455.1

$25.21

Description：LINE FILTER 125V/250VAC 4A TH
Series：5500
Mfr：SCHURTER Inc.
Package：Bulk

SKU:2a941c15d6e5 Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 125V/250VAC 4A TH
Series：5500
Mfr：SCHURTER Inc.
Package：Bulk
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：125V, 250V
Current：4:00 AM
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：cURus, ENEC, VDE
Operating Temperature：-25°C ~ 85°C
Mounting Type：Through Hole
Termination Style：PC Pins
Inductance：1.6mH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

5500.0455.1

Overview

The SCHURTER 5500.0455.1 is a single-phase EMI line filter designed for mains power applications. It features a rated current of 4 A and operates at voltage ratings of 125 VAC and 250 VAC with frequencies of 50 Hz and 60 Hz. The component utilizes a single-stage filtering architecture and employs PC pin termination for circuit board mounting.

Feature Summary

Single-stage electromagnetic interference suppression
PC pin termination for printed circuit board integration

Applications

Mains power input filtering
Electronic equipment EMI suppression

Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and compliance certifications. Ensure the PCB footprint matches the PC pin configuration. Confirm that the 4 A current rating and voltage specifications align with the target system requirements before finalizing procurement.

Selection Notes

Select this component for applications requiring single-stage filtering with through-hole PC pin mounting. Verify that the 4 A current capacity and 125/250 VAC voltage ratings are sufficient for the intended load. Consider the single-stage topology limitations compared to multi-stage alternatives if higher attenuation is required.

Part Context

This part belongs to the SCHURTER 5500 series, which encompasses various power line filters. The 5500.0455.1 variant specifically addresses low-current applications using a single-stage design. It is distinct from higher current or multi-stage models within the same product family.

Replacement Considerations

Consult official substitution lists for verified equivalents. Generic cross-references may not match the specific electrical characteristics or mounting requirements.
