5500.0455.3

Overview

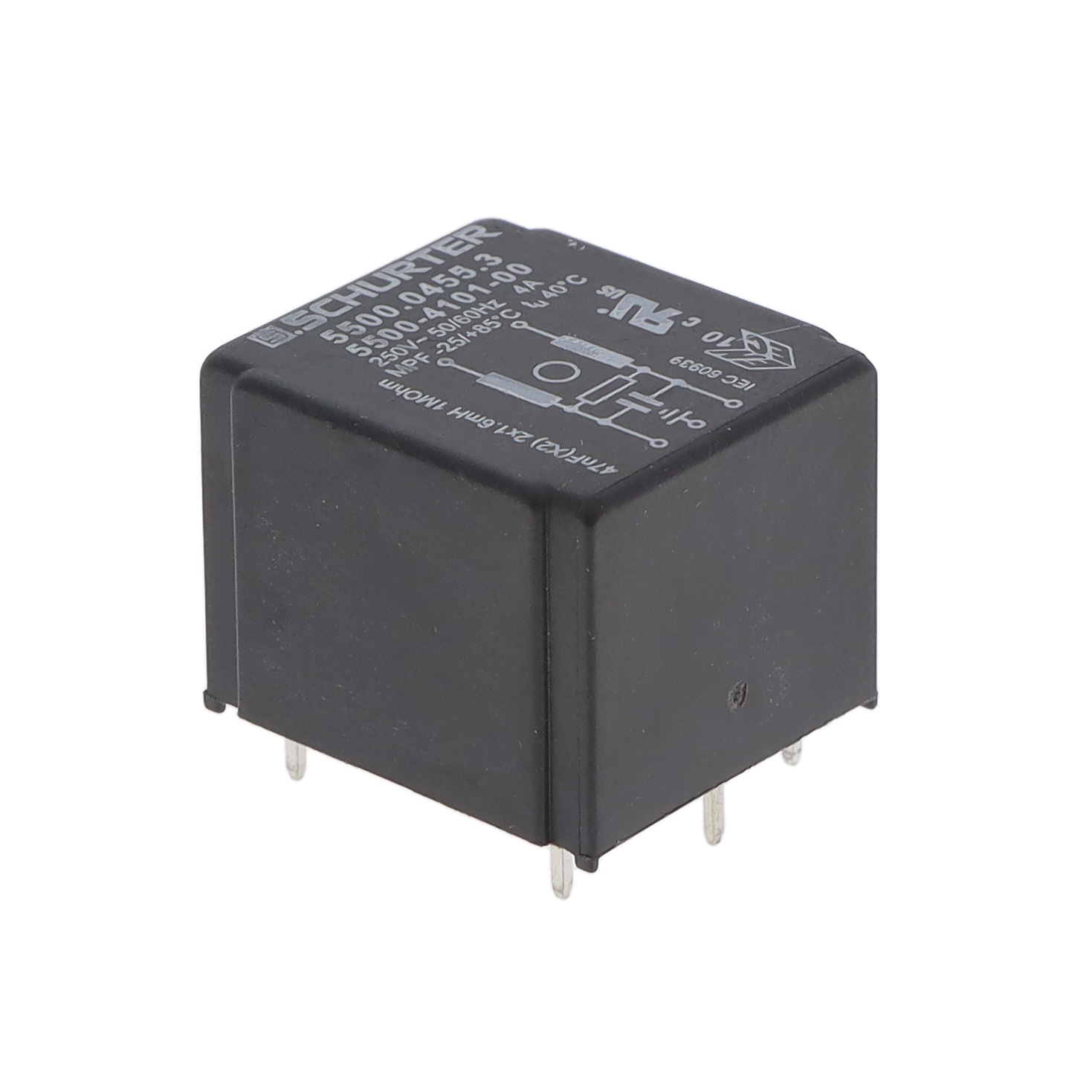

The SCHURTER 5500.0455.3 is a single-phase EMC/EMI line filter designed for PCB mounting. It features a single-stage filtering architecture with a rated current of 4 A and a voltage rating of 250 V AC at 50/60 Hz. The component utilizes PC pin termination for direct board integration.

Feature Summary

• Single-stage EMI/EMC filtering capability
• PCB mounting configuration with PC pins

Applications

• Electronic equipment requiring EMI suppression
• Power supply input stages
• General electronic circuits

Procurement Notes

Verify the specific ordering suffix against official Schurter documentation to confirm terminal type and electrical ratings. Ensure compatibility with PCB footprint requirements before procurement. Confirm regulatory certifications required for the target application market.

Selection Notes

Select this component for applications requiring single-phase filtering with PCB integration. Verify that the 4 A current rating and 250 V AC voltage rating meet system specifications. Consider the single-stage design limitations regarding attenuation requirements compared to multi-stage alternatives.

Part Context

This part belongs to the SCHURTER 5500 series, which encompasses various power line filters. The series includes models with different current ratings, stage configurations, and mounting styles such as chassis or PCB mount options.

Replacement Considerations

Check for alternative part numbers within the 5500 series that match the 4 A rating and PC pin termination. Verify equivalent electrical performance and physical dimensions for direct replacement.
