Product Detailed Parameters
- Description：LINE FILTER 125V/250VAC 6A TH
- Series：5500
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：125V, 250V
- Current：6:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：cURus, ENEC, VDE
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Through Hole
- Termination Style：PC Pins
- Inductance：700µH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

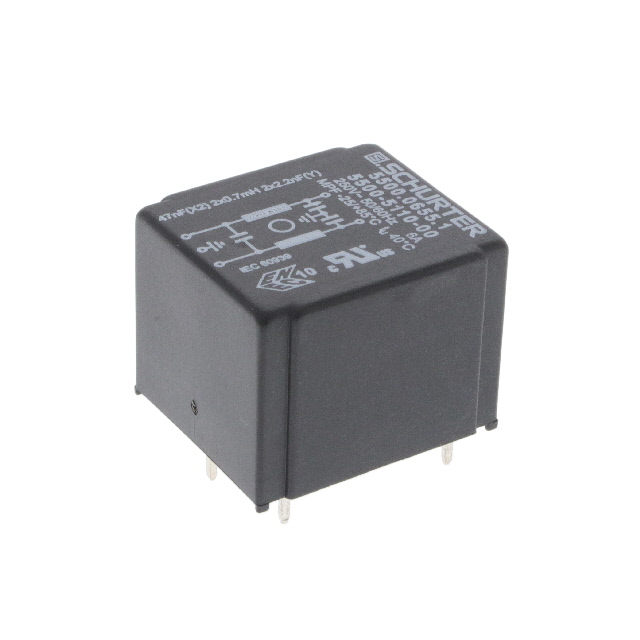

The Schurter 5500.0655.1 is a single-phase, single-stage EMI power line filter module designed for general-purpose applications. It supports a rated current of 6 A and operates at voltage ratings of 125 VAC and 250 VAC with frequencies of 50 Hz and 60 Hz. The component features an inductance of 700 µH and utilizes PC pin through-hole termination. It is certified under UL, CSA, VDE, and EN standards.
Feature Summary
- Single-stage filtering configuration for compact integration
- PC pin through-hole mounting for standard PCB assembly
- Compliance with major international safety certifications
Applications
- General purpose electronic equipment
- Industrial control systems
- Medical devices
Procurement Notes
Verify the specific datasheet version to confirm mechanical dimensions and terminal compatibility before integration. Ensure that the operating environment remains within the specified temperature range and that the load current does not exceed the 6 A rating to maintain certification validity and performance stability.
Selection Notes
Select this component when a single-stage solution is sufficient for EMI suppression requirements. It is suitable for designs requiring through-hole mounting and standard AC input voltages. Compare against two-stage models if higher attenuation is needed or if chassis mounting is preferred over PCB integration.
Part Context
This part belongs to the Schurter 5500 series of power line filters. The series offers various configurations including single and multi-stage options with different current ratings and termination styles. The 5500.0655.1 specifically addresses low-current, single-phase applications requiring reliable noise reduction.
FAQ
What is the inductance value of the 5500.0655.1?
The inductance is 700 µH.
Is this filter single-stage or two-stage?
It is a single-stage filter.
