5500.0655.3

Overview

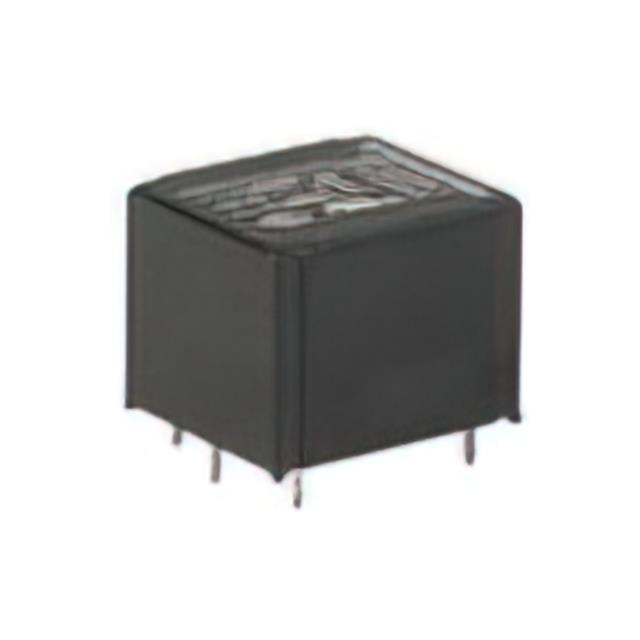

The SCHURTER 5500.0655.3 is a single-phase power line filter module designed for AC mains applications. It supports voltage ratings of 125 VAC and 250 VAC with a nominal current capacity of 6 A. The component utilizes through-hole mounting technology for PCB integration. It operates at standard frequencies of 50 Hz and 60 Hz. The unit is classified under the 5500 Main Filter series, providing electromagnetic interference suppression for electronic equipment connected to AC power sources.

Feature Summary

• Provides electromagnetic interference filtering for AC power lines
• Supports dual voltage ratings for global compatibility
• Utilizes through-hole termination for printed circuit board installation

Applications

• AC power input stages in electronic devices
• Electromagnetic compatibility filtering for consumer electronics
• Industrial control system power supplies

Procurement Notes

Verify the specific datasheet version for the 5500.0655.3 part number to confirm exact electrical parameters and mechanical dimensions. Ensure that the selected component meets the required safety certifications for the target market. Cross-reference the manufacturer's official documentation to validate compliance with relevant international standards before finalizing procurement decisions.

Selection Notes

Select this component when a single-phase, 6 A rated filter is required for through-hole PCB assembly. Consider the physical footprint and terminal type compatibility with the design layout. Evaluate the leakage current specifications against sensitive application requirements. Confirm that the operating temperature range aligns with the environmental conditions of the intended deployment scenario.

Part Context

This component belongs to the SCHURTER 5500 series of power line filters. The series offers various current ratings and mounting options for EMI suppression. The 5500.0655.3 variant specifically addresses needs for moderate current applications requiring robust through-hole connectivity. It serves as a fundamental protection element in AC power entry modules.

Replacement Considerations

Consult the official Schurter replacement guide or equivalent distributor cross-reference lists for verified substitute part numbers. Ensure any alternative component matches the original current rating, voltage class, and mounting configuration. Verify that substitute parts maintain identical safety approvals and performance characteristics.
