5500.1055.1

Overview

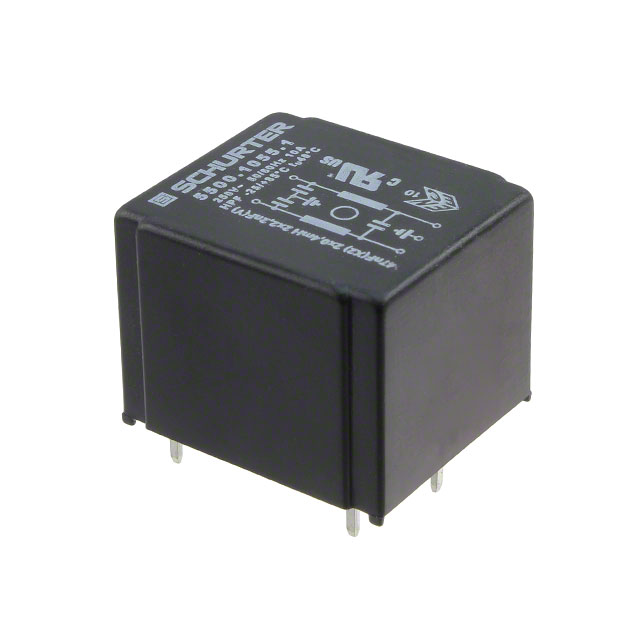

The Schurter 5500.1055.1 is a single-phase EMI filter circuit designed for power line applications. It operates at rated AC voltages of 125V and 250V with a current rating of 10A. The component features a single-stage configuration and an inductance of 300µH. It supports operating frequencies of 50Hz and 60Hz. The unit utilizes PC pin termination for board mounting.

Feature Summary

• Single-stage electromagnetic interference filtering architecture
• Designed for general-purpose power line protection
• Utilizes printed circuit board pin termination

Applications

• General purpose electronic equipment
• Power supply input stages
• Single-phase AC mains filtering

Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and compliance certifications. Ensure the PCB layout accommodates the PC pin spacing and current carrying capacity requirements. Cross-reference the manufacturer's official documentation for any updates regarding material composition or regulatory status changes.

Selection Notes

Select this component for single-phase applications requiring 10A handling capability. The single-stage design suits environments with moderate noise levels. Verify that the 300µH inductance meets the specific attenuation requirements of the target system without causing excessive voltage drop.

Part Context

This part belongs to the Schurter 5500 series of power line filter modules. These components are engineered for integration into various electronic devices to suppress conducted emissions. The series offers standardized configurations for common industrial and commercial power filtering needs.

Replacement Considerations

Consult official substitution lists for equivalent single-phase, 10A, single-stage filters with compatible PC pin footprints. Verify that alternative components match the 300µH inductance and 125V/250V voltage ratings.
