5500.2001

Overview

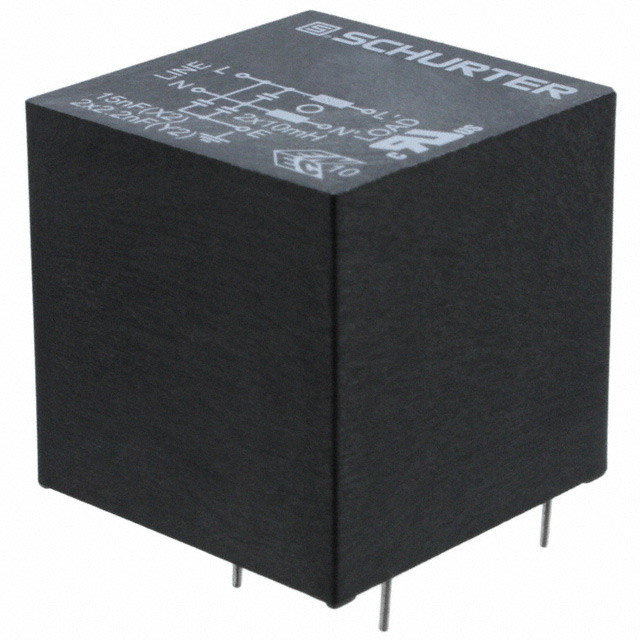

The Schurter 5500.2001 is a single-phase, single-stage EMI power line filter designed for PCB mounting. It operates at rated voltages of 125 VAC and 250 VAC with a current rating of 1 A. The component functions at standard frequencies of 50 Hz and 60 Hz. It features PC pin termination for board integration. The unit is certified under UL standards and complies with RoHS directives.

Feature Summary

• Single-stage filtering architecture for electromagnetic interference suppression
• Optimized design for standard or medical applications
• PCB mounting configuration using PC pins

Applications

• Medical equipment power supplies
• Standard electronic device power inputs
• AC mains interface circuits

Procurement Notes

Verify the specific datasheet version to confirm compliance certifications such as UL and RoHS status. Ensure the PCB layout accommodates the PC pin termination style. Confirm that the 1 A current rating and 250 VAC voltage limit meet the system requirements. Check for any specific medical safety approvals if used in regulated environments.

Selection Notes

Select this component when a compact, single-stage solution is required for low-current AC lines. It is suitable for applications needing basic EMI attenuation without complex multi-stage designs. Verify that the PCB space allows for the specified pin spacing. Consider thermal constraints if the operating environment exceeds standard limits.

Part Context

This part belongs to the Schurter 5500 series of AC filters. These modules are engineered for efficient noise reduction in single-phase systems. The series offers various current ratings and mounting options to suit different industrial and consumer electronics needs.
