5500.2002

Overview

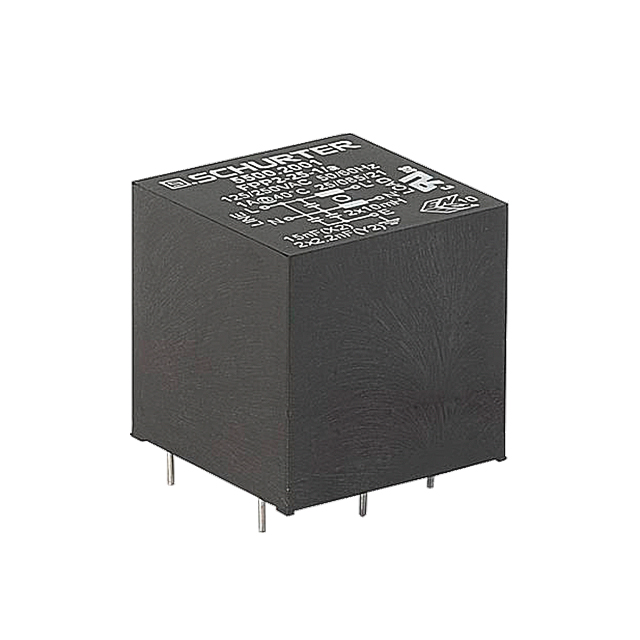

The SCHURTER 5500.2002 is a single-phase, single-stage power line filter designed for PCB mounting. It operates at voltage ratings of 125 VAC and 250 VAC with a current rating of 2 A. The component functions at standard frequencies of 50 Hz and 60 Hz. It features PC pin termination for through-hole installation. The unit weighs approximately 8 grams.

Feature Summary

• Single-stage EMI/RFI filtering architecture
• Through-hole PCB mounting configuration
• Optimized for standard or medical applications

Applications

• Medical equipment power supplies
• General purpose AC power conditioning
• PCB-mounted electronic devices

Procurement Notes

Verify the specific datasheet version to confirm compliance certifications such as UL or VDE. Ensure the 2 A current rating and 250 VAC voltage limit align with the target circuit requirements. Confirm that the PC pin pitch matches the printed circuit board layout specifications before finalizing procurement.

Selection Notes

Select this component when a low-profile, single-stage filter is required for 2 A circuits. It is suitable for applications where space constraints favor PCB mounting over chassis installation. Consider leakage current limits if used in sensitive medical environments requiring strict safety isolation standards.

Part Context

This part belongs to the SCHURTER FPP2 series of general-purpose power line filters. It is distinct from higher-current models like the 5500.2035 (6 A) or multi-stage variants. The series focuses on compact, cost-effective EMI suppression for consumer and industrial electronics.

FAQ

Is the 5500.2002 a single-stage or two-stage filter?

It is a single-stage filter.

What is the maximum operating voltage?

The maximum voltage rating is 250 VAC.
