5500.2007

Overview

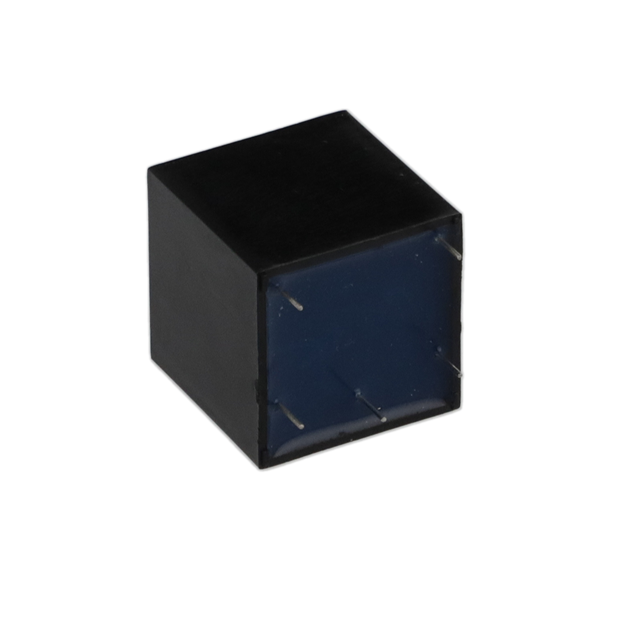

The SCHURTER 5500.2007 is a single-stage power line filter designed for through-hole mounting. It supports voltage ratings of 125 VAC and 250 VAC with a current rating of 2 A. Operating at 50 Hz or 60 Hz, the component features quick-connect terminals for chassis installation. It holds cURus, ENEC, and VDE certifications.

Feature Summary

• Single-stage filtering configuration optimized for standard applications
• Through-hole construction suitable for PCB integration
• Quick-connect terminal interface for simplified assembly

Applications

• General purpose AC power input filtering
• Medical equipment power stages
• Standard electronic device power supplies

Procurement Notes

Verify certification requirements against target market regulations before procurement. Confirm that the 2 A current rating and 250 VAC voltage limit align with the specific application load. Ensure chassis mounting space accommodates the physical dimensions and that quick-connect terminals match the wiring harness specifications.

Selection Notes

Select this model when single-stage attenuation is sufficient for the electromagnetic interference environment. The 2 A rating limits suitability for high-power loads. Verify that the quick-connect termination style matches the existing board layout constraints compared to screw or wire-lead alternatives.

Part Context

This component belongs to the SCHURTER 5500 series of power line filters. The series offers various configurations including multi-stage options and different current ratings. The 5500.2007 specifically addresses low-current general-purpose needs within this broader product family.

Replacement Considerations

Cross-reference with other 5500 series variants for higher current or multi-stage requirements. Verify pinout compatibility if substituting with similar single-stage filters from other manufacturers.
