5500.2014

Overview

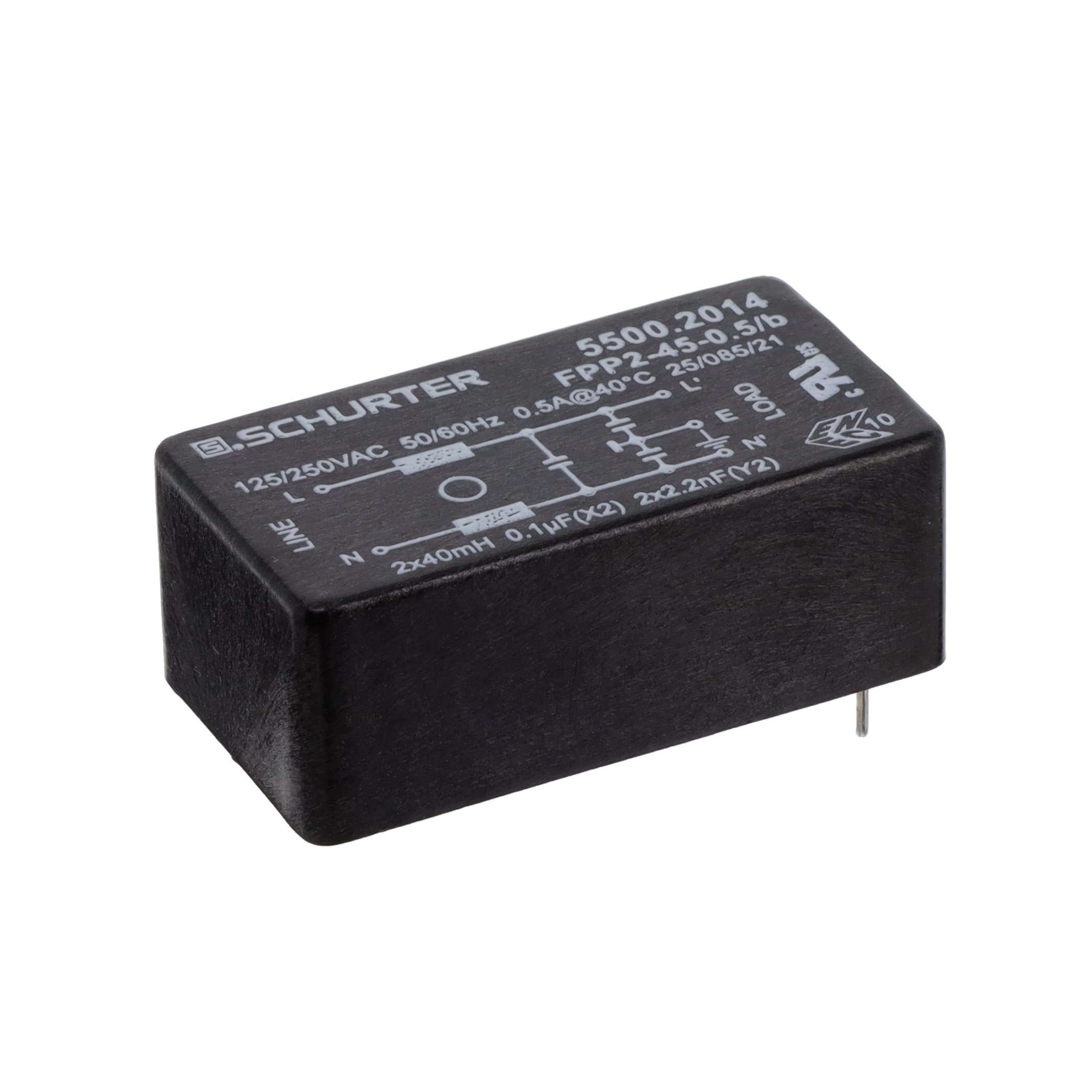

The Schurter 5500.2014 is a single-stage power line filter designed for AC applications. It operates at rated voltages of 125 VAC and 250 VAC with a current rating of 0.5 A (500 mA). The component supports frequencies of 50 Hz and 60 Hz. It utilizes PC pin termination for PCB mounting. The device functions within an operating temperature range of -25°C to 85°C.

Feature Summary

• Single-stage EMI filtering architecture
• PC board mounting via PC pins
• Dual voltage rating capability

Applications

• Low-power electronic equipment input stages
• Consumer electronics power supplies
• Control circuitry noise suppression

Procurement Notes

Verify the specific datasheet version for the 5500.2014 to confirm exact attenuation curves and leakage current specifications, as these are critical for compliance. Ensure the PCB footprint matches the PC pin spacing defined in the official mechanical drawing before integration.

Selection Notes

Select this component for circuits requiring low-current EMI suppression on standard AC mains. The single-stage design offers cost efficiency for basic noise reduction needs. Confirm that the 0.5 A rating meets the load requirements and that the PC pin termination is compatible with the assembly process.

Part Context

This part belongs to the Schurter 5500 series of power line filters. These components are engineered for electromagnetic interference suppression in AC power inputs. The series provides various current ratings and stage configurations to suit different power levels and noise environments.

Replacement Considerations

Cross-reference with other Schurter 5500 series parts for identical current and voltage ratings. Verify mechanical dimensions and terminal type compatibility when considering alternative manufacturers.
