5500.2015

Overview

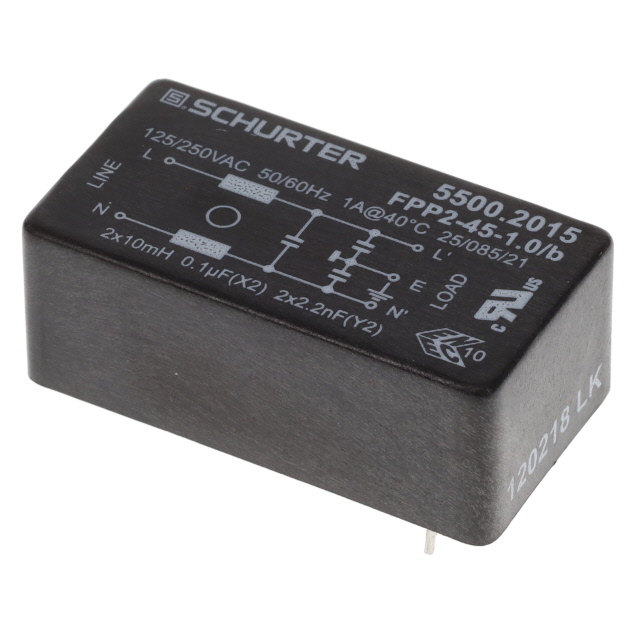

The Schurter 5500.2015 is a single-phase EMI power line filter designed for printed circuit board (PCB) mounting. It operates at voltage ratings of 125 VAC and 250 VAC with a current rating of 1 A. The component utilizes PC pin termination and functions at standard frequencies of 50 Hz and 60 Hz. It is housed in a flat enclosure suitable for compact electronic assemblies.

Feature Summary

• Designed for PCB mounting using PC pin terminals
• Single-phase AC filtering capability
• Flat housing construction

Applications

• Electronic equipment requiring PCB-mounted EMI suppression
• Power supply input stages
• Compact consumer electronics enclosures

Procurement Notes

Verify the specific datasheet version to confirm exact attenuation curves and leakage current specifications. Ensure the PCB footprint matches the PC pin dimensions provided in the official mechanical drawings. Confirm compliance requirements such as RoHS status with the manufacturer before finalizing procurement orders.

Selection Notes

Select this component when space constraints require a flat, low-profile filter design. It is appropriate for applications needing 1 A current handling at 250 VAC. Verify that the required insertion loss meets system EMC standards. Consider thermal management if operating near maximum current ratings.

Part Context

This part belongs to the Schurter 5500 series of AC filters. The series includes various configurations for different current ratings and mounting styles. The 5500.2015 specifically addresses the need for small-footprint filtering solutions in modern electronic devices where panel space is limited.

FAQ

What is the mounting style for the 5500.2015?

It uses PC pins for direct printed circuit board mounting.

Is this filter suitable for high-current applications?

No, it is rated for 1 A, which is suitable for low-power circuits.
