5500.2016

Overview

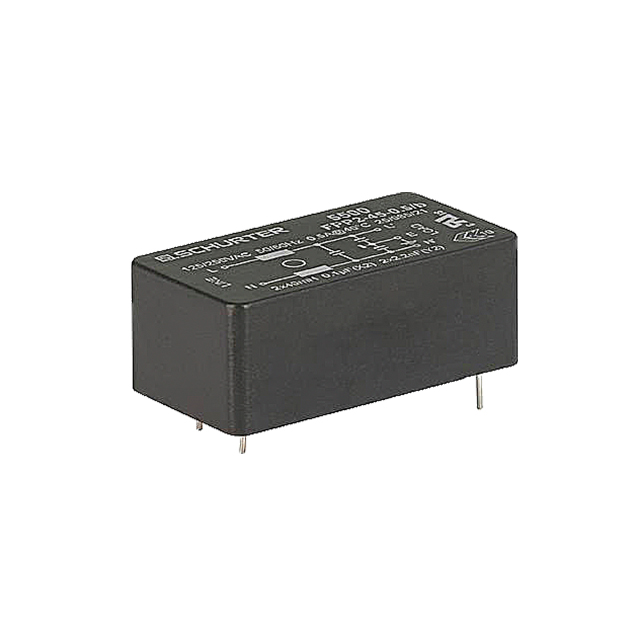

The Schurter 5500.2016 is a single-stage EMI power line filter designed for printed circuit board mounting. It operates at voltage ratings of 125 VAC and 250 VAC with a current rating of 1.6 A. The component utilizes a flat housing design suitable for PCB integration. It functions at standard frequencies of 50 Hz and 60 Hz. The unit provides electromagnetic interference suppression in a compact form factor.

Feature Summary

• Flat housing construction optimized for direct PCB mounting
• Single-stage filtering architecture for EMI suppression
• Supports dual voltage ratings of 125 VAC and 250 VAC

Applications

• Electronics requiring PCB-integrated EMI filtering
• Equipment utilizing flat housing filter designs
• Power supply input stages for consumer electronics

Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and terminal configurations. Ensure the application environment matches the 125 VAC or 250 VAC rating. Confirm that the 1.6 A current capacity meets the system requirements. Check for any specific RoHS compliance documentation if required by the target market regulations.

Selection Notes

Select this component when a low-profile, single-stage filter is required for PCB assembly. It is suitable for applications where space constraints necessitate a flat housing design. Consider the 1.6 A current limit and dual voltage capability during circuit design. Evaluate the EMI attenuation requirements against single-stage performance capabilities.

Part Context

This part belongs to the Schurter FPP series of power line filters. The series focuses on compact, PCB-mountable solutions for electromagnetic interference reduction. The 5500.2016 variant specifically offers a 1.6 A rating within this family. It serves as an alternative to larger chassis-mounted units in space-sensitive designs.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model.
