5500.2017

Overview

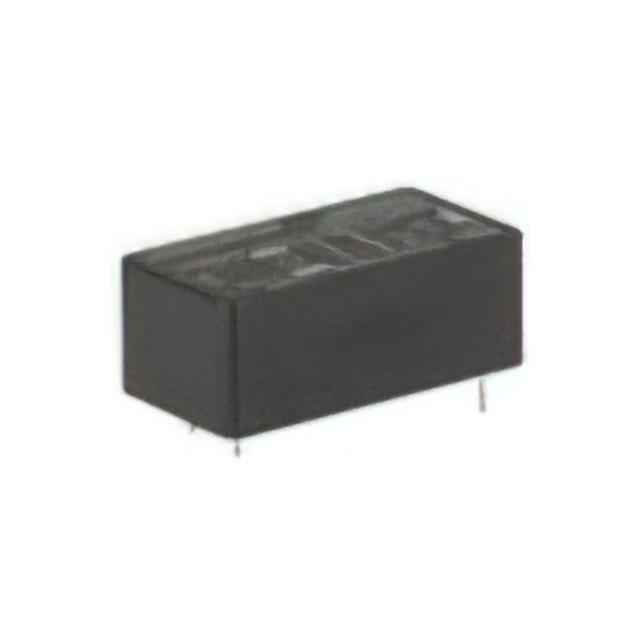

The SCHURTER Inc. 5500.2017 is a single-stage AC power line filter designed for PCB mounting in flat housing configurations. It supports a maximum voltage rating of 250 VAC and operates at frequencies of 50 Hz or 60 Hz. The component features a high potential insulation strength of 2700 V and provides a current rating of 2.5 A.

Feature Summary

• Single-stage EMC/EMI filtering configuration
• PCB mounting design within a flat housing structure

Applications

• AC input filtering for electronic equipment
• PCB-mounted noise suppression applications

Procurement Notes

Verify the specific datasheet version to confirm compliance with current safety standards such as UL, CSA, and VDE. Ensure that the thermal characteristics and leakage current specifications align with the target application requirements before finalizing procurement decisions.

Selection Notes

Select this component when a low-profile, single-stage filter is required for 2.5 A circuits. Consider the flat housing constraint and PCB mounting style against chassis mount alternatives if space limitations exist.

Part Context

This model belongs to the SCHURTER 5500 series of power line filters. It represents a specialized solution for compact electronics requiring integrated EMI suppression without the bulk of traditional chassis-mounted units.

Replacement Considerations

No public confirmed substitute part numbers are available.
