5500.2022

Overview

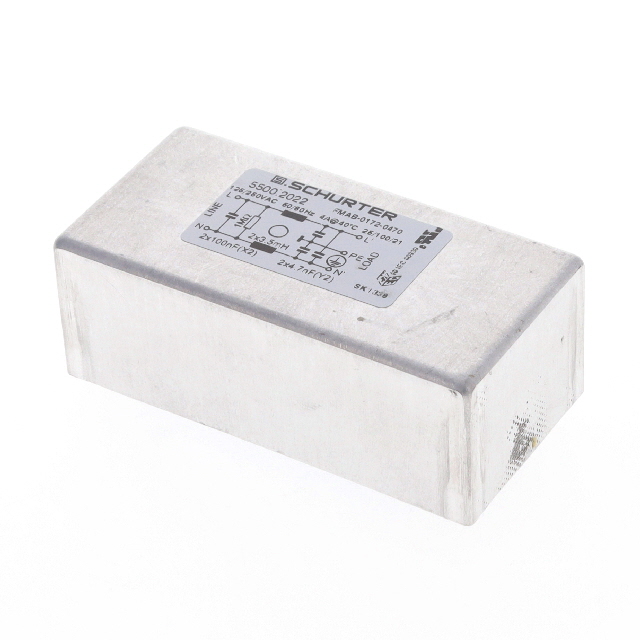

The Schurter Inc. 5500.2022 is a single-phase, single-stage power line filter designed for electromagnetic interference suppression. It features a standard attenuation characteristic with a rated current of 4 A and voltage ratings of 125 VAC and 250 VAC. The component utilizes through-hole mounting with PC pin termination and operates within a temperature range of -25°C to 100°C at 50/60 Hz.

Feature Summary

• Single-stage filtering architecture for basic EMI/EMI noise reduction
• Through-hole PC pin termination for printed circuit board integration
• Dual voltage rating capability supporting 125 VAC and 250 VAC systems

Applications

• Consumer electronics power input stages
• Medical equipment internal power supplies
• Industrial control system interfaces

Procurement Notes

Verify the specific datasheet revision to confirm exact leakage current and insertion loss values, as these parameters vary by manufacturing batch. Ensure the PCB footprint matches the PC pin spacing specified in the official mechanical drawing before finalizing the design.

Selection Notes

Select this model when a compact, low-cost single-stage solution is sufficient for meeting regulatory emission limits. It is suitable for applications where space constraints prevent the use of larger multi-stage filters but require reliable through-hole connectivity.

Part Context

This component belongs to the FMLB or FMAB series of Schurter power line filters. These units are engineered for general-purpose EMC compliance in AC mains powered devices, offering a balance between performance and physical size for standard chassis or PCB mounting scenarios.

Replacement Considerations

Cross-reference part numbers such as 5500.2035 or 5500.2077 if higher current ratings or different leakage current specifications are required. Verify that any substitute maintains the same terminal type and mounting style.
