Product Detailed Parameters
- Description：LINE FILTER 125V/250VAC 10A TH
- Series：FMAB-72
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：125V, 250V
- Current：10:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：cURus, ENEC, VDE
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Through Hole
- Termination Style：PC Pins
- Inductance：820µH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

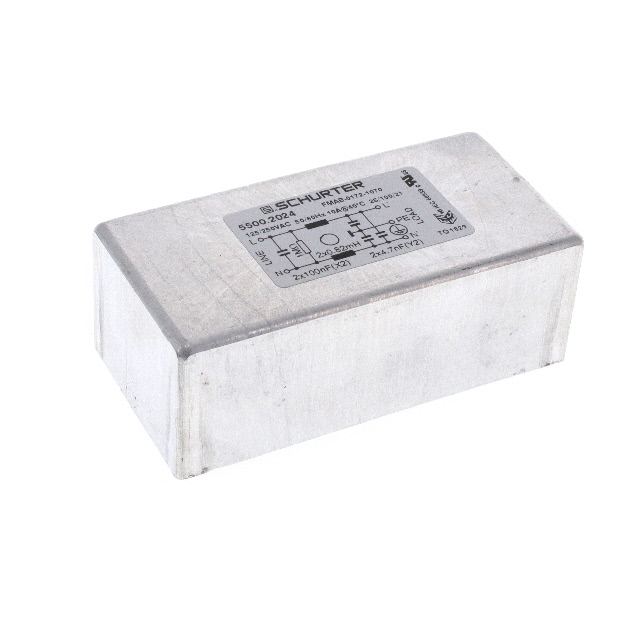

The Schurter 5500.2024 is a power line filter module designed for electromagnetic interference suppression in single-phase AC circuits. It operates at rated voltages of 125 VAC and 250 VAC with a current rating of 10 A. The component supports frequencies of 50 Hz and 60 Hz, featuring a leakage current of 1 MOhm resistance characteristics. It utilizes PCB mounting and functions within an operating temperature range of -25°C to 100°C.
Feature Summary
- Provides EMI filtering for single-phase power lines
- Designed for PCB chassis integration
- Compliant with RoHS environmental standards
Applications
- Industrial control systems requiring EMI suppression
- Medical equipment power inputs
- Consumer electronics power supplies
Procurement Notes
Verify the specific datasheet revision and compliance certificates (UL, CSA, VDE) directly with Schurter Inc. or authorized distributors before procurement. Confirm that the 10A current rating and PCB mounting style align with the target application's thermal and mechanical requirements. Ensure the voltage ratings match the local grid specifications.
Selection Notes
Select this model when a compact, PCB-mountable EMI filter is required for 10A single-phase applications. Consider the -25°C to 100°C operating range for environmental suitability. Compare against other 5500 series variants if different current ratings or mounting styles are needed. Verify insulation and leakage current specifications against safety standards relevant to the end product.
Part Context
This component belongs to the Schurter 5500 series of power line filters. The series offers various configurations for different current and voltage requirements. The 5500.2024 specifically addresses needs for moderate current handling in space-constrained PCB designs, providing essential noise reduction for sensitive electronic loads.
FAQ
What is the maximum operating temperature for the 5500.2024?
The component is rated for an operating temperature range from -25°C to 100°C.
Is the 5500.2024 suitable for DC applications?
The datasheet specifies a rated DC voltage of 250V, but it is primarily classified as a power line filter for AC circuits at 50/60Hz.
