5500.2025

Overview

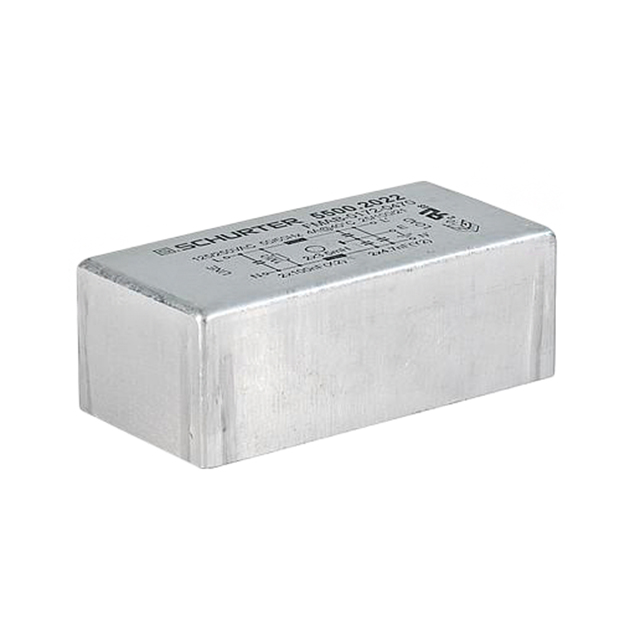

The SCHURTER 5500.2025 is a single-phase RFI power line filter belonging to the FMAB-72 series. It features a flat aluminum housing designed for PCB mounting via through-hole PC pins. The component supports a rated current of 16A and operates at voltages up to 250V AC across 50Hz and 60Hz frequencies.

Feature Summary

• Flat aluminum housing construction
• PCB mounting with through-hole PC pins

Applications

• AC filter integration in electronic equipment
• PCB-mounted noise suppression systems

Procurement Notes

Verify the specific datasheet version for the 5500.2025 to confirm exact leakage current and attenuation values, as distributor listings may vary. Ensure the ordering suffix matches the required terminal configuration and certification requirements before finalizing procurement.

Selection Notes

Select this model when a compact, low-profile filter is required for direct PCB integration. The flat aluminum design aids in thermal management and space-constrained layouts. Confirm that the 16A rating meets the circuit's continuous load requirements.

Part Context

This component is part of Schurter's FMAB-72 series, which specializes in filters utilizing flat aluminum housings. This series provides robust EMI suppression solutions suitable for applications requiring efficient heat dissipation and secure mechanical attachment to printed circuit boards.

Replacement Considerations

Consult official Schurter documentation for verified substitute part numbers within the FMAB series or other compatible single-stage filters.
