5500.2026

Overview

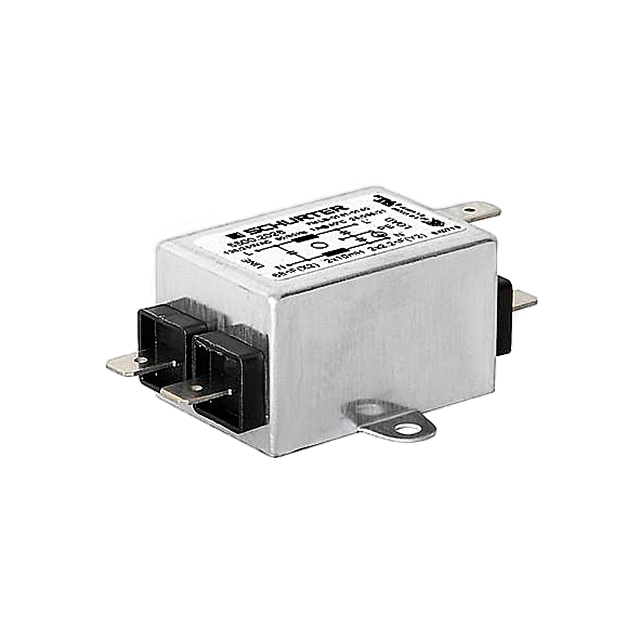

The SCHURTER 5500.2026 is a single-stage power line filter designed for chassis mounting. It operates at rated voltages of 125 VAC and 250 VAC with a current rating of 1 A. The component features quick connect terminals and has a leakage current of 250 uA. It belongs to the FMLB series and supports operating frequencies of 50 Hz and 60 Hz.

Feature Summary

• Single-stage EMI filtering architecture
• Chassis mount installation style
• Quick connect terminal termination

Applications

• Medical equipment power inputs
• Industrial control systems
• Consumer electronics power supplies

Procurement Notes

Verify the specific datasheet version for the 5500.2026 model to confirm compliance certifications such as UL, CSA, or VDE. Ensure the application voltage does not exceed the 250 VAC rating. Confirm that the 1 A current capacity meets system requirements. Check for RoHS compliance status in the official documentation before integration.

Selection Notes

Select this component when a low-current, single-stage filter is required for chassis-mounted applications. The FMLB series offers a compact solution for basic EMI suppression. Compare leakage current specifications against safety standards if used in medical or sensitive environments. Verify terminal compatibility with existing wiring harnesses.

Part Context

This part belongs to the SCHURTER 5500 series of power line filters. The FMLB sub-series specifically denotes single-stage filters with quick connect terminals. This family is distinct from multi-stage variants like the FMW2 series, offering simpler filtering for less noisy environments.

FAQ

What is the maximum leakage current for the 5500.2026?

The maximum leakage current is specified as 250 uA.

Is this filter suitable for 50 Hz and 60 Hz operations?

Yes, the component is rated for both 50 Hz and 60 Hz operating frequencies.
