5500.2031

Overview

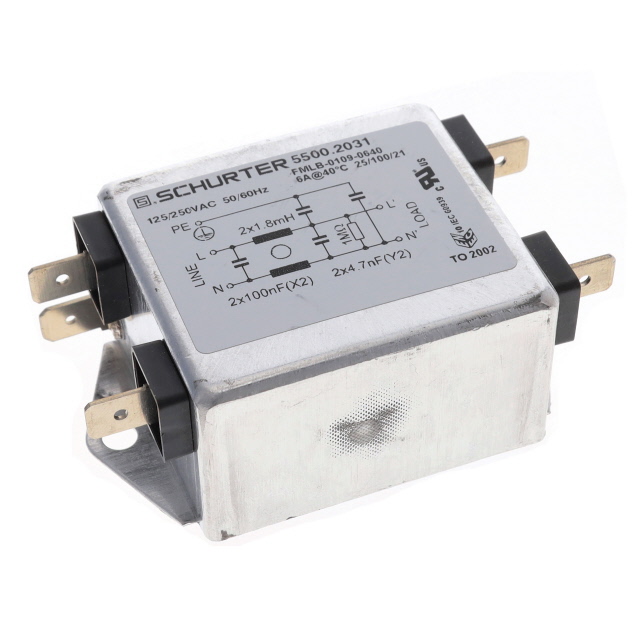

The Schurter 5500.2031 is a single-phase, single-stage AC power line filter designed for chassis mounting within the FMLB-41 series. It features a rated current of 6A and operates at voltages of 125VAC or 250VAC with a frequency of 50Hz/60Hz. The component utilizes screw terminals for connection and offers low leakage current characteristics suitable for sensitive equipment.

Feature Summary

• Single-stage filtering architecture for cost-effective EMI suppression
• Chassis mount design with screw terminal connections
• Low leakage current specification for safety compliance

Applications

• Medical equipment power inputs
• Industrial control systems
• Office automation devices

Procurement Notes

Verify the specific voltage rating (125VAC vs 250VAC) required for your application against the datasheet specifications. Confirm that the chassis mounting style and screw terminal interface match your enclosure design. Ensure the 6A current rating provides adequate margin for peak loads to prevent thermal issues during operation.

Selection Notes

Select this model when a single-stage filter meets EMI requirements while minimizing cost and space. Compare leakage current limits against regulatory standards for medical or consumer electronics. Evaluate the physical dimensions and mounting hole patterns to ensure compatibility with existing panel layouts before finalizing the component choice.

Part Context

This component belongs to the FMLB-41 series, representing Schurter's cost-optimized line filter solutions. It serves as a fundamental electromagnetic interference suppression device for general-purpose AC power applications where high attenuation is not strictly mandated by stringent regulatory environments.

Replacement Considerations

Cross-reference part number 5500.2030 for similar FMLB series filters with different current ratings. Verify electrical parameters and mechanical footprint compatibility before substituting any alternative components from other manufacturers.
