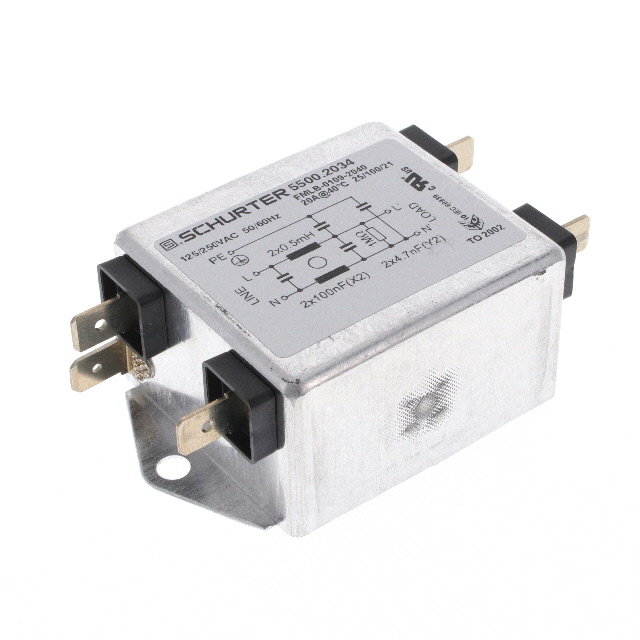

5500.2034

$23.83

Description：LINE FILTER 125V/250VAC 20A CHAS
Series：FMLB-09
Mfr：SCHURTER Inc.
Package：Bulk

SKU:974398e604ec Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 125V/250VAC 20A CHAS
Series：FMLB-09
Mfr：SCHURTER Inc.
Package：Bulk
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：125V, 250V
Current：20 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：cURus, ENEC, VDE
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：500µH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

5500.2034

Overview

The Schurter 5500.2034 is a cost-optimized AC power line filter from the 5500 series, rated for 20A current and 6.3mm quick connect terminals. It operates within a temperature range of -25°C to 100°C at a frequency of 5.06kHz.

Feature Summary

Cost-optimized design for standard applications
Quick connect terminal interface for simplified assembly

Applications

General purpose AC power filtering
Industrial equipment noise suppression

Procurement Notes

Verify the specific datasheet version for the 5500.2034 part number to confirm exact attenuation curves and certification status. Ensure compatibility with 6.3mm quick connect mating connectors. Confirm thermal management requirements for operation near the 100°C upper limit.

Selection Notes

Select this component when a 20A rating and quick connect termination are required. Compare against the 5500.2030 (screw terminal) if mounting style differs. Verify that the 5.06kHz operating frequency meets system noise profiles.

Part Context

Part of the Schurter 5500 series, designed as a cost-effective solution for AC power line filtering. The series offers various ratings and termination styles to suit different enclosure and wiring constraints.

Replacement Considerations

The 5500.2030 shares similar electrical characteristics but uses screw terminals instead of quick connects. Verify mechanical fit and connection method before substitution.
