Product Detailed Parameters
- Description：LINE FILTER 125V/250VAC 10A CHAS
- Series：FMLB-51
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：125V, 250V
- Current：10:00 AM
- Frequency - Operating：50/60Hz
- Applications：Inverters, Power Drive Systems
- Approval Agency：cURus, ENEC, VDE
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：5mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

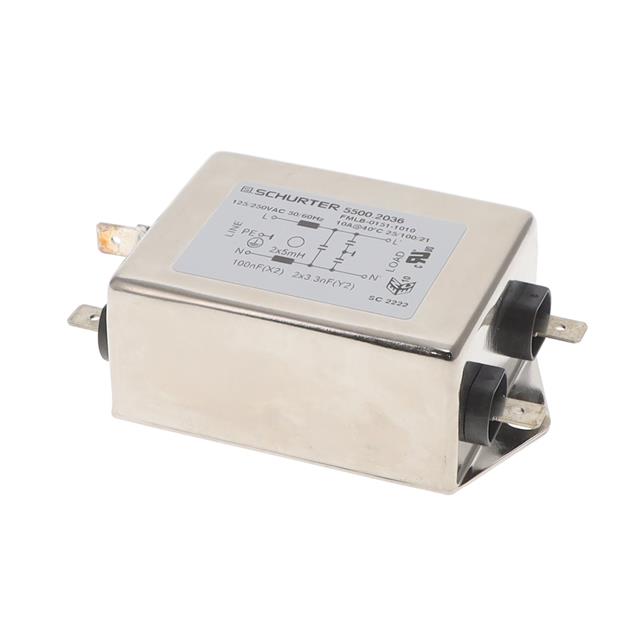

The Schurter 5500.2036 is a cost-optimized AC power line filter belonging to the FMLB series. It is designed for single-phase applications with a rated voltage of 250 VAC and operates at frequencies of 50 Hz or 60 Hz. The component utilizes quick connect terminals for circuit integration and supports chassis mounting configurations. This linear filter provides electromagnetic interference suppression for electronic equipment requiring reliable power conditioning within standard industrial voltage parameters.
Feature Summary
- Cost-optimized design for budget-conscious applications
- Single-stage linear filtering architecture
- Quick connect terminal interface for simplified assembly
Applications
- General purpose AC power line filtering
- Industrial equipment EMI suppression
- Consumer electronics power input stages
Procurement Notes
Verify the specific current rating and leakage current specifications against your system requirements, as datasheet details may vary by revision. Confirm that the quick connect terminal dimensions match your PCB or wire harness connectors. Ensure the chassis mounting style aligns with your enclosure design constraints before finalizing procurement.
Selection Notes
Select this component when a cost-effective solution for basic EMI filtering is required. It is suitable for applications where high attenuation is not critical compared to other Schurter series. Consider the thermal environment and ensure the operating temperature range meets your deployment conditions. Verify compatibility with local safety standards if certification is mandatory.
Part Context
This part belongs to the FMLB series from Schurter, which focuses on economical power line filters. The series typically offers standard performance levels for general industrial use. It serves as an alternative to more complex multi-stage filters when space and cost are primary constraints. The FMLB series maintains consistent quality standards across its product range.
FAQ
What type of terminal connection does the 5500.2036 use?
It uses quick connect terminals for electrical interfacing.
Is this filter suitable for two-phase systems?
No, it is designed specifically for single-phase AC power lines.
