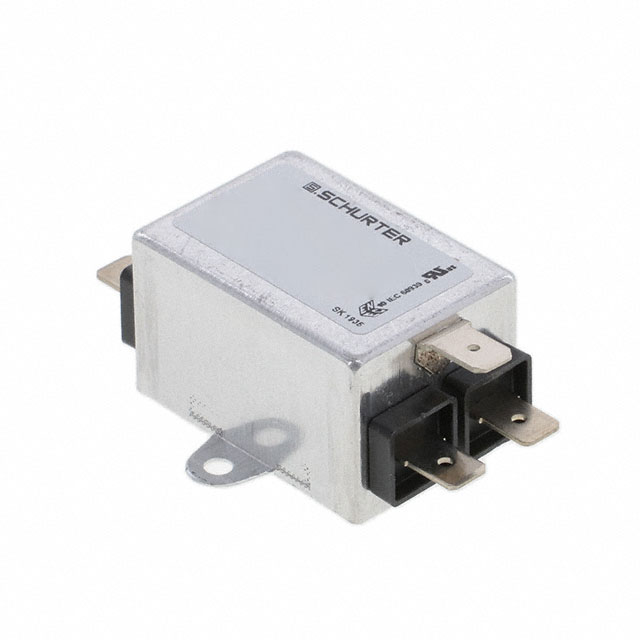

5500.2039

$14.67

Description：LINE FILTER 125V/250VAC 1A CHASS
Series：FMW-41
Mfr：SCHURTER Inc.
Package：Bulk

SKU:e4e6462fb226 Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 125V/250VAC 1A CHASS
Series：FMW-41
Mfr：SCHURTER Inc.
Package：Bulk
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：125V, 250V
Current：1:00 AM
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：cURus, ENEC, VDE
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：10mH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

5500.2039

Overview

The Schurter 5500.2039 is a single-stage power line filter from the FMW2 series, rated for 1 A at 250 VAC and 60 Hz. It features quick connect terminals and panel mount installation. The unit operates between -25°C and 100°C with specified capacitance values of Cx 15nF and Cy 2.2nF.

Feature Summary

Single-stage RFI filtering design
Quick connect terminal interface
Panel mount configuration

Applications

Power supply input stages
Electronic equipment EMC protection
Signal integrity maintenance in AC circuits

Procurement Notes

Verify the exact part number against official Schurter documentation to confirm specifications. Ensure compatibility with system voltage and current requirements before procurement. Cross-reference datasheets for precise electrical characteristics and mounting details.

Selection Notes

Select this component for applications requiring single-stage EMI suppression with quick connect convenience. Verify that the 1A rating and 250VAC limit meet circuit demands. Confirm panel mount space availability and thermal operating range suitability.

Part Context

This component belongs to the Schurter FMW2 series of power line filters. These units are designed for electromagnetic interference suppression in AC power lines, offering compact solutions for electronic devices requiring compliance with emission standards.

Replacement Considerations

Consult official Schurter substitution guides for verified alternatives. Generic equivalents may not match specific capacitance or mounting requirements.
