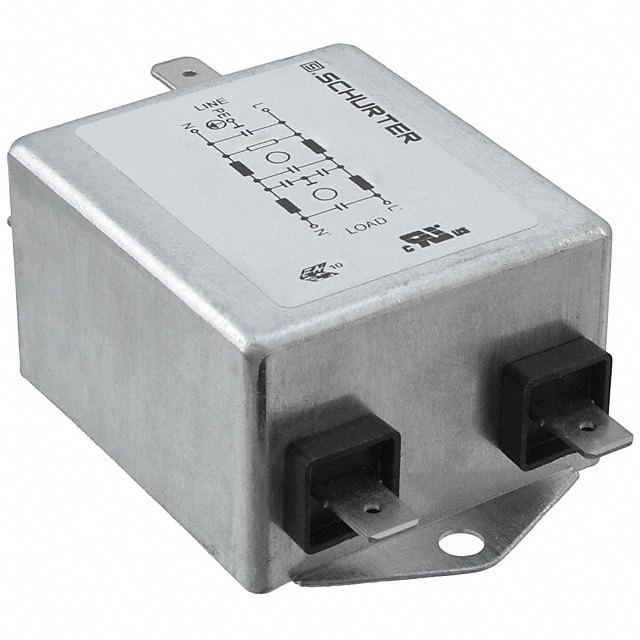

5500.2044

$24.29

Description：LINE FILTER 125V/250VAC 6A CHASS
Series：FMW-52
Mfr：SCHURTER Inc.
Package：Bulk

SKU:be12e44810ab Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 125V/250VAC 6A CHASS
Series：FMW-52
Mfr：SCHURTER Inc.
Package：Bulk
Filter Type：Single Phase
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：125V, 250V
Current：6:00 AM
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：cURus, ENEC, VDE
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：800µH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

5500.2044

Overview

The SCHURTER 5500.2044 is a single-phase, two-stage power line filter designed for electromagnetic compatibility (EMC) applications. It operates at rated voltages of 125 VAC and 250 VAC with a current rating of 6 A. The unit features an inductance of 800 uH and a leakage current of 250 uA. It supports frequencies of 50 Hz and 60 Hz. The filter utilizes quick connect terminals and is intended for chassis mounting. It belongs to the FMW2 series and complies with UL, CSA, VDE, and EN standards.

Feature Summary

Two-stage filtering architecture for enhanced noise attenuation
Chassis mount design for secure installation
Quick connect terminal interface for simplified wiring

Applications

Industrial equipment requiring EMC compliance
Power supply input stages
Electronic devices sensitive to conducted interference

Procurement Notes

Verify that the required current rating of 6 A and voltage ratings of 125 VAC or 250 VAC match the system specifications. Confirm that the chassis mount style and quick connect terminals are compatible with the existing assembly. Ensure compliance with UL, CSA, VDE, and EN standards is necessary for the target market. Check datasheet details for specific attenuation curves and thermal limits before finalizing the order.

Selection Notes

Select this component when a two-stage filter is required for single-phase AC lines up to 6 A. The 800 uH inductance provides specific attenuation characteristics suitable for general-purpose applications. Consider the 250 uA leakage current limit if safety isolation is critical. The FMW2 series designation indicates the specific form factor and terminal type available for this part number.

Part Context

This component is part of the Schurter FMW2 series of power line filters. These filters are engineered for general-purpose use in environments where conducted emissions must be suppressed. The series offers various current ratings and configurations, with the 5500.2044 specifically providing a 6 A capacity and two-stage performance within a compact chassis-mountable housing.
