5500.2045

Overview

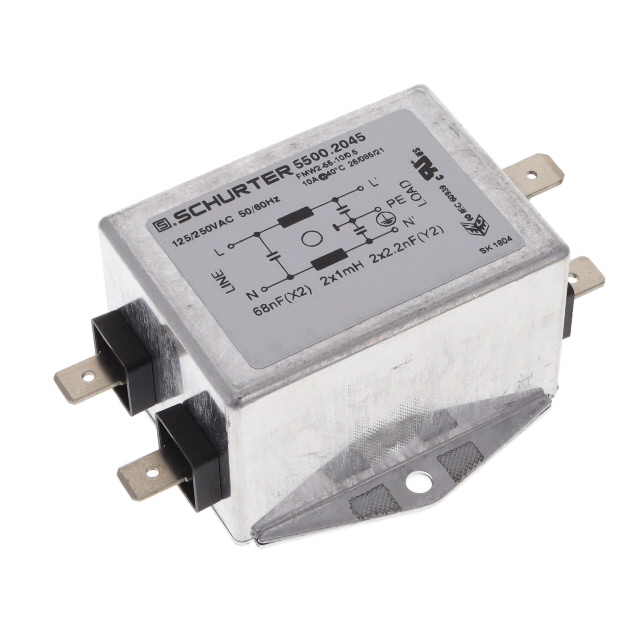

The SCHURTER 5500.2045 is a single-phase power line filter designed for chassis mounting. It operates at rated voltages of 125 VAC and 250 VAC with a current rating of 10 A. The unit supports frequencies of 50 Hz and 60 Hz, featuring quick connect terminals for circuit integration. Key electrical specifications include an inductance of 1 mH and physical dimensions of 33 mm height by 57 mm depth.

Feature Summary

• Single-stage EMI/EMC filtering architecture
• Chassis mount construction for secure installation
• Quick connect terminal interface

Applications

• General purpose power line conditioning
• Industrial equipment EMC suppression
• Electronic device input protection

Procurement Notes

Verify the specific voltage rating (125V or 250V) required for your application against the datasheet. Confirm that the 10A current rating and 1mH inductance meet system requirements. Ensure chassis mounting space accommodates the 33mm x 57mm footprint. Check for necessary certifications such as VDE, cULus, or ENEC depending on regional compliance needs.

Selection Notes

Select this component when a single-stage filter solution is sufficient for noise reduction. Compare inductance values with alternative models if higher attenuation is needed. Verify terminal type compatibility with existing wiring harnesses. Consider thermal derating if operating near maximum temperature limits.

Part Context

This model belongs to Schurter's power line filter module series. It serves as a general-purpose electromagnetic interference suppressor. The design prioritizes compact chassis integration over PCB mounting alternatives.

Replacement Considerations

Cross-reference part number 5500.2044 for similar filtering characteristics. Verify pinout and mechanical dimensions before substitution.
