Product Detailed Parameters
- Description：LINE FILTER 125V/250VAC 20A CHAS
- Series：FMW-55
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：125V, 250V
- Current：20 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：cURus, ENEC, VDE
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：150µH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

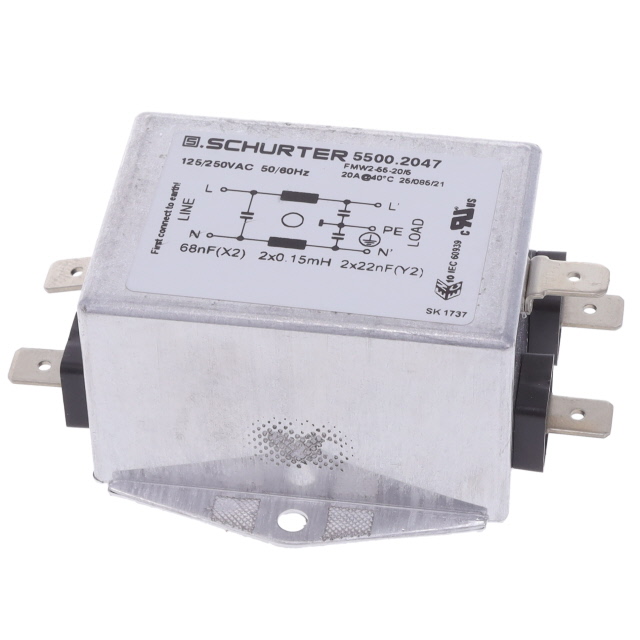

The Schurter 5500.2047 is a single-phase AC power line filter designed for chassis mounting. It operates at a rated voltage of 125 VAC and 250 VAC with a current rating of 20 A. The unit supports frequencies of 50 Hz and 60 Hz, functioning within an ambient temperature range of -25°C to +100°C. Termination is achieved via quick connect terminals. This component serves as an EMC/EMI line filter to suppress interference from the mains supply.
Feature Summary
- Provides electromagnetic interference suppression for AC power lines
- Designed for direct chassis mounting installation
- Utilizes quick connect terminal termination for circuit integration
Applications
- Equipment compliant with IEC/UL 60950 standards
- General purpose power line filtering applications
- Mains interference voltage protection systems
Procurement Notes
Verify the specific datasheet version for the 5500.2047 to confirm exact attenuation curves and leakage current specifications required for your design. Ensure the chassis mounting holes align with your enclosure design. Confirm that the quick connect terminal dimensions match your wiring harness connectors before finalizing procurement.
Selection Notes
Select this model when a 20 A single-phase filter is required for chassis-mounted applications. It is suitable for environments operating between -25°C and +100°C. Consider this part for equipment needing compliance with general safety standards like UL and IEC 60950 where quick-connect termination is preferred over screw terminals.
Part Context
This component belongs to the Schurter power line filter portfolio, specifically engineered for AC mains input stages. It addresses common mode and differential mode noise in single-phase systems. The design focuses on robust thermal performance and compact chassis integration for industrial and commercial electronic equipment.
Replacement Considerations
Cross-reference with other Schurter FMLB or FSW series filters if different current ratings or termination styles are needed. Verify that any substitute maintains the same 20 A rating and 250 VAC capability while matching the physical chassis mounting footprint.
