5500.2049

Overview

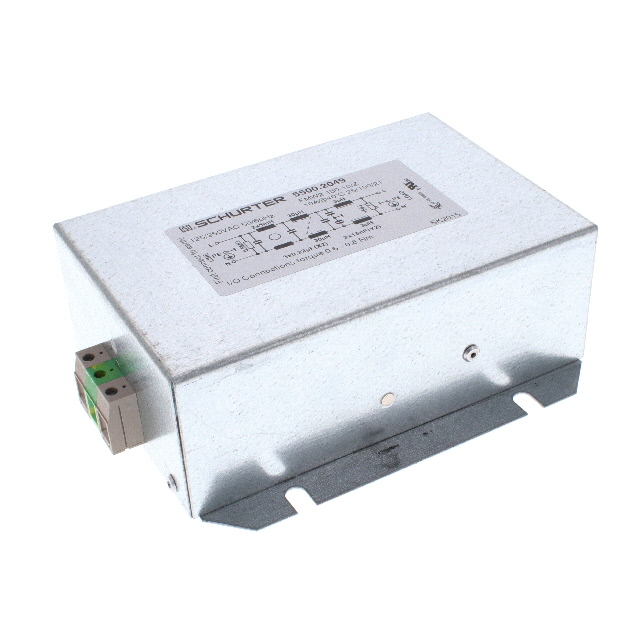

The SCHURTER 5500.2049 is a single-phase EMC/EMI line filter module designed for power line conditioning. It supports an operating frequency of 50 Hz and 60 Hz with a current rating of 10 A. The device accommodates voltage ratings of 125 VAC and 250 VAC. It utilizes a three-stage filtering architecture to suppress electromagnetic interference. The unit employs terminal block connections for secure electrical interfacing. Installation is configured for chassis mounting applications.

Feature Summary

• Three-stage filtering architecture for enhanced noise suppression
• Terminal block connection interface for secure wiring
• Chassis mount configuration for stable installation

Applications

• Industrial equipment power supply input stages
• Medical device power conditioning
• Commercial machinery EMI mitigation

Procurement Notes

Verify the specific datasheet version as availability may vary by region. Confirm that the terminal block specifications match your wiring requirements. Check for any updated compliance certifications relevant to your target market before finalizing procurement decisions.

Selection Notes

Select this component when a three-stage filtration approach is required for 10 A single-phase applications. Ensure the chassis mounting style fits the enclosure design. Verify that the terminal block termination method aligns with the system's wiring infrastructure and safety standards.

Part Context

This part belongs to the SCHURTER power line filter modules category. It is engineered for general-purpose EMC/EMI suppression in AC power lines. The design focuses on reliable noise reduction for sensitive electronic loads operating at standard utility frequencies.

Replacement Considerations

DigiKey lists this product as no longer manufactured. Identify equivalent single-phase, 10 A, three-stage filters with terminal block connections from current production lines. Verify that substitute parts meet the same voltage and frequency ratings.
