5500.205

Overview

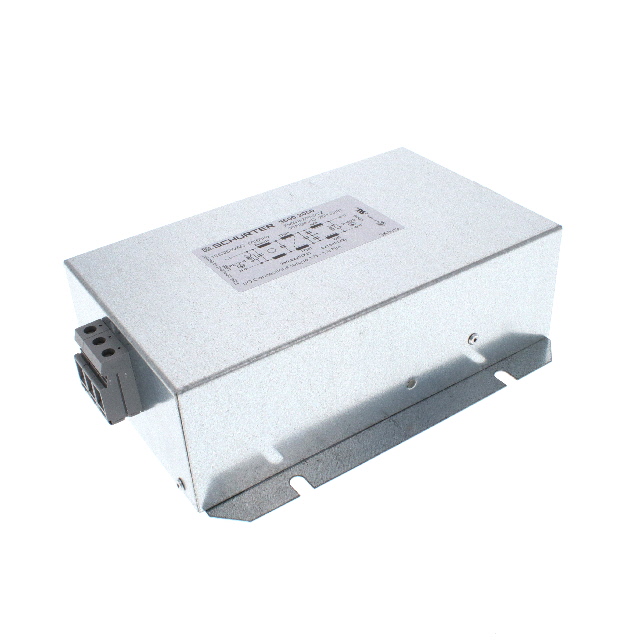

The Schurter 5500.205 is a single-phase EMC/EMI power line filter designed for chassis mounting. It features a current rating of 30 A and operates at voltage ratings of 125 VAC and 250 VAC. The component exhibits a leakage current of 1.5 mA and functions within standard 50 Hz and 60 Hz frequency ranges. This unit belongs to the 5500 series, providing essential noise suppression capabilities for AC power applications requiring high current handling.

Feature Summary

• Provides electromagnetic interference suppression for single-phase AC power lines
• Designed for secure chassis mounting installation
• Supports high current operation up to 30 A

Applications

• Industrial machinery power input stages
• Medical equipment power conditioning
• Commercial IT infrastructure power supplies

Procurement Notes

Verify the specific datasheet version for the 5500.205 model to confirm exact terminal types and mechanical dimensions. Ensure compatibility with the target chassis aperture and mounting hardware requirements before integration into the final assembly design.

Selection Notes

Select this component when a single-stage filter solution is required for circuits drawing up to 30 A. Confirm that the 1.5 mA leakage current specification meets the safety standards of the end application environment.

Part Context

This part belongs to the Schurter 5500 series of power line filters. The series offers various configurations tailored for different current loads and attenuation requirements, utilizing standardized chassis mount formats for easy integration into electronic enclosures.

Replacement Considerations

Consult official Schurter documentation for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' components without validating electrical parameters and physical footprint specifications.
