5500.2052

Overview

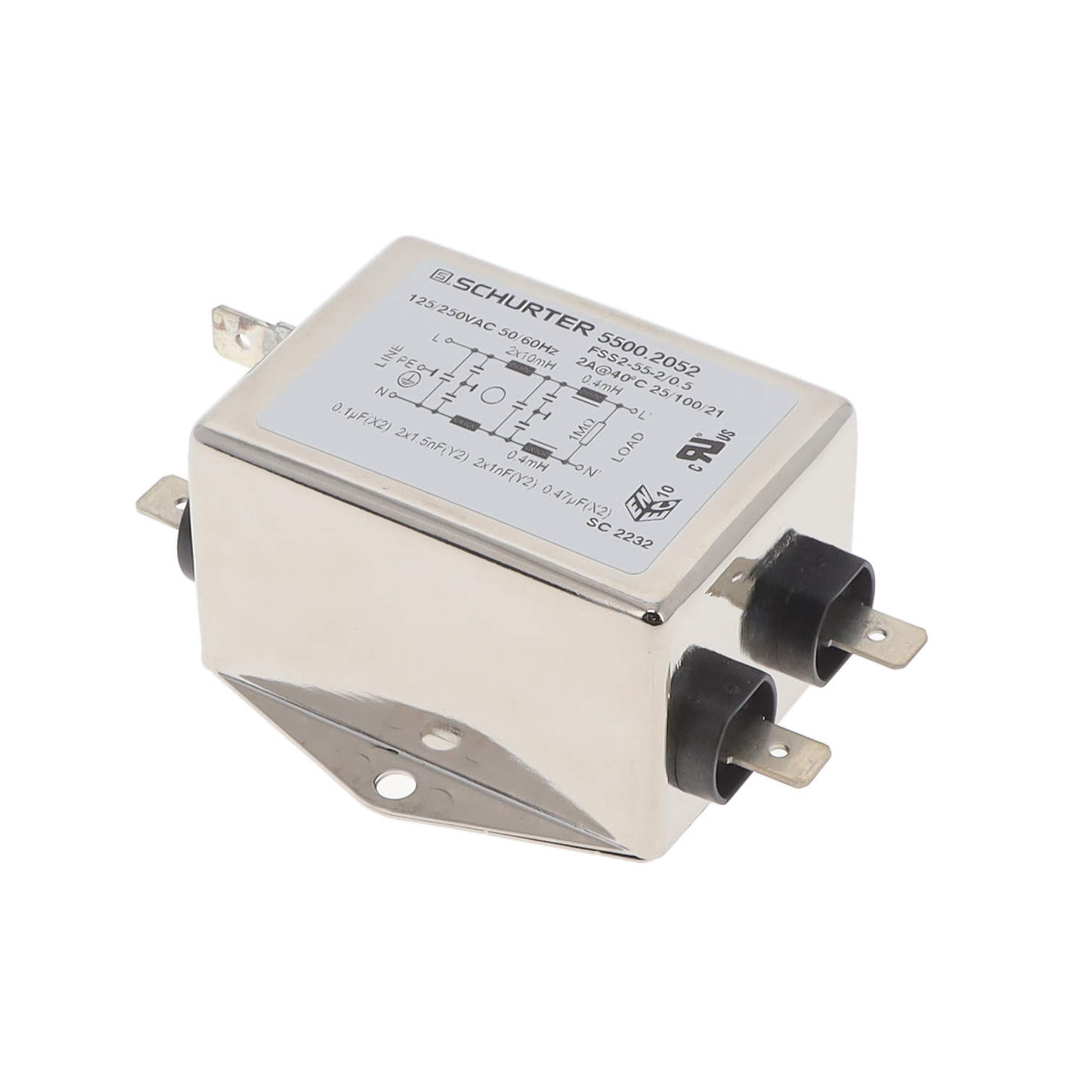

The SCHURTER 5500.2052 is a single-phase, two-stage power line filter designed for chassis mounting. It operates at rated voltages of 125 VAC and 250 VAC with a current rating of 2 A. The component utilizes quick connect terminals for circuit termination and functions at standard frequencies of 50 Hz and 60 Hz. Key electrical specifications include a leakage current of 350 uA and compliance with UL standards.

Feature Summary

• Two-stage filtering architecture providing very high symmetrical attenuation
• Chassis mount installation style for secure integration
• Quick connect terminal type for efficient wiring

Applications

• Industrial equipment power conditioning
• Medical device EMI suppression
• Computer equipment noise reduction

Procurement Notes

Verify the specific datasheet revision to confirm exact leakage current values and certification marks (UL, CSA, VDE) required for your target market. Ensure the chassis mounting dimensions and quick connect terminal spacing match your PCB or panel layout constraints before finalizing procurement.

Selection Notes

Select this model when high symmetrical attenuation is required in a compact form factor. The 2 A rating suits low-power applications, while the two-stage design offers superior noise rejection compared to single-stage alternatives. Verify that the 350 uA leakage current is acceptable for sensitive medical or safety-critical circuits.

Part Context

This component belongs to the Schurter FMLB/FMW series of power line filters. These modules are engineered for EMC compliance in AC mains applications. The 5500.2052 specifically addresses scenarios requiring robust common-mode and differential-mode noise suppression within strict spatial limitations.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult Schurter technical support for cross-references based on specific attenuation curves and mechanical constraints.
