5500.2054

Overview

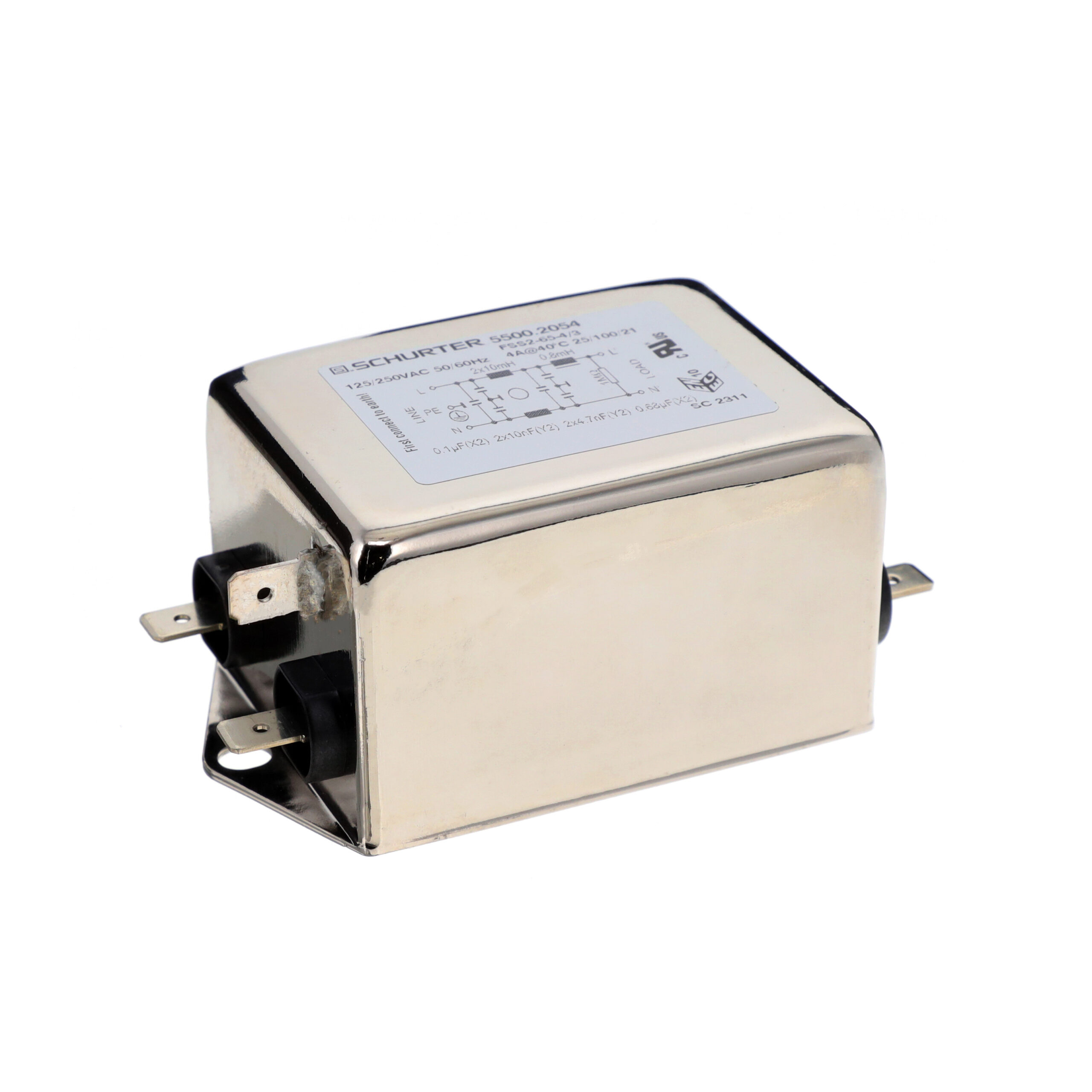

The Schurter 5500.2054 is a single-phase, two-stage AC power line filter designed for industrial applications. It supports operating voltages of 125 VAC and 250 VAC with a rated current of 4 A. The unit features quick connect terminals and chassis mounting. Key electrical parameters include a maximum leakage current of 250 uA and an inductance of 800 uH. It operates within a temperature range of -25°C to +100°C at 50/60 Hz. The component measures 66 mm in length and holds UL, CSA, and IEC certifications.

Feature Summary

• Two-stage filtering architecture providing very high symmetrical attenuation for effective EMI/EMI suppression
• Dual voltage rating capability supporting both 125 VAC and 250 VAC operational environments
• Chassis mount construction with quick connect terminals for straightforward integration

Applications

• Industrial equipment requiring robust electromagnetic interference suppression
• Single-phase AC power distribution systems
• Electronic devices needing compliance with international safety standards

Procurement Notes

Verify the specific voltage rating (125 VAC or 250 VAC) required for your circuit design before ordering. Confirm that the chassis mounting style and quick connect terminal type match your assembly requirements. Ensure the 4 A current rating exceeds your application's peak load. Check for updated certification documents if regulatory compliance is critical for your region.

Selection Notes

Select this model when high symmetrical attenuation is necessary for noise reduction in single-phase AC lines. It is suitable for applications where space allows for chassis mounting rather than PCB installation. Consider the 4 A current limit and ensure it aligns with the load profile. The wide operating temperature range makes it appropriate for varied environmental conditions.

Part Context

This component belongs to the FSS series of power line filters from Schurter Inc. It is categorized as an AC filter module designed for industrial use. The product is actively manufactured and supported. It serves as a solution for meeting EMC/EMI regulations in electronic systems powered by single-phase AC sources.

Replacement Considerations

No direct substitute part numbers are publicly confirmed for this specific model. When replacing, verify that any alternative matches the two-stage topology, 4 A current rating, and dual voltage support. Ensure physical dimensions and terminal types are compatible with existing mounting structures.
