Product Detailed Parameters
- Description：LINE FILTER 125V/250VAC 10A CHAS
- Series：FSS
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：125V, 250V
- Current：10:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：cURus, ENEC, VDE
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

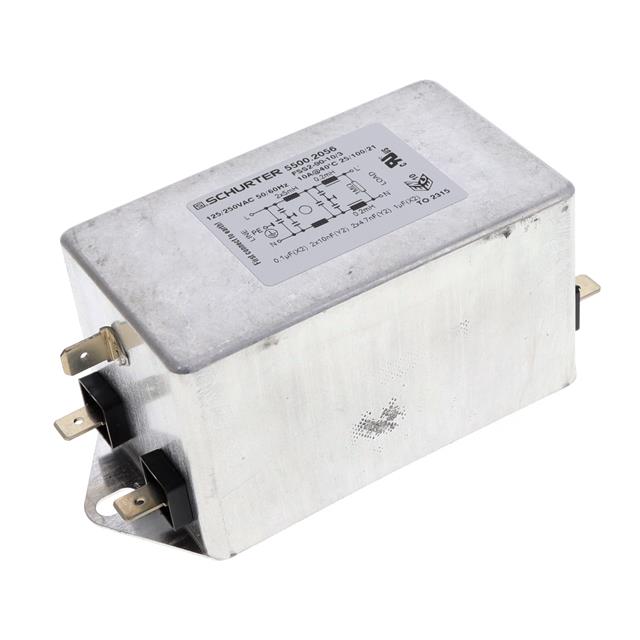

The Schurter 5500.2056 is a two-stage AC power line filter designed for single-phase applications. It supports rated voltages of 125 VAC and 250 VAC with a current rating of 10 A. The component utilizes chassis mount installation and features quick connect terminals. It operates within a temperature range of -25°C to 100°C at frequencies of 50 Hz and 60 Hz. Maximum leakage current is specified at 1.4 mA, and the unit measures 87 mm in length.
Feature Summary
- Two-stage filtering architecture providing very high symmetrical attenuation
- Chassis mount design for secure panel integration
- Quick connect terminal configuration for simplified wiring
Applications
- Industrial equipment power conditioning
- Medical device power supply input protection
- Commercial machinery EMI suppression
Procurement Notes
Verify the specific datasheet version for the 5500.2056 to confirm exact attenuation curves and thermal derating characteristics. Ensure the mounting hardware matches the chassis thickness requirements. Confirm that the quick connect terminal dimensions align with the mating connector specifications in the target assembly design.
Selection Notes
Select this model when high symmetrical attenuation is required for single-phase AC lines up to 10 A. The two-stage design offers superior noise reduction compared to single-stage alternatives. Verify that the 1.4 mA leakage current meets safety standards for the intended application environment.
Part Context
This component belongs to the Schurter AC Filter series, specifically engineered for general-purpose electromagnetic interference suppression. The two-stage topology distinguishes it from simpler linear filters, offering enhanced performance for sensitive electronic loads requiring strict compliance with emission standards.
Replacement Considerations
Cross-reference with other Schurter two-stage filters in the same voltage and current class. Verify terminal type compatibility before substitution. Ensure the replacement part maintains the required symmetrical attenuation levels for the specific frequency band.
