5500.2057

Overview

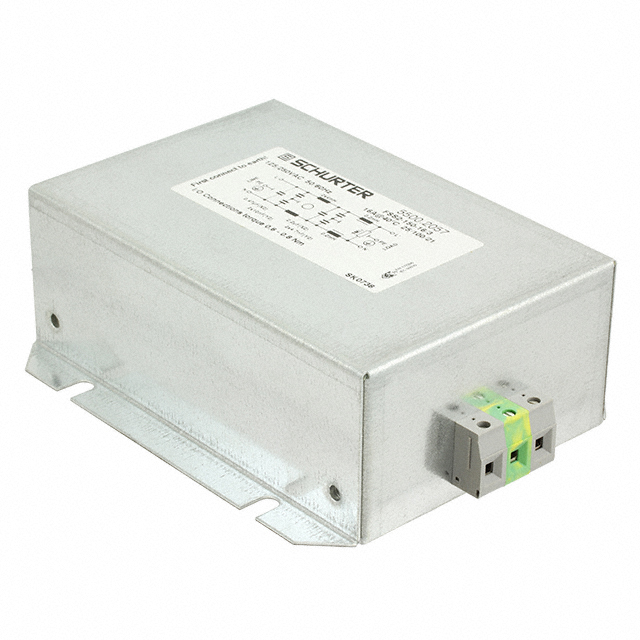

The Schurter 5500.2057 is a single-phase EMI power line filter designed for AC mains applications. It operates at rated voltages of 125 VAC and 250 VAC with a current rating of 16 A. The component features chassis mount installation and utilizes screw terminals for secure electrical connections. It supports standard frequencies of 50 Hz and 60 Hz, functioning within an operating temperature range of -25°C to +100°C. The unit exhibits a maximum leakage current of 1.4 mA and holds multiple international safety certifications including cURus, ENEC, and VDE.

Feature Summary

• Provides electromagnetic interference suppression for single-phase AC power lines
• Features robust chassis mounting with screw terminal connectivity
• Complies with stringent international safety standards and certifications

Applications

• Industrial machinery power supply input stages
• Medical equipment internal power filtering
• Commercial IT infrastructure power conditioning

Procurement Notes

Verify the specific voltage rating configuration (125V or 250V) required for your circuit design before ordering. Confirm that the chassis mounting dimensions and screw terminal specifications match your enclosure layout. Ensure the 16A current rating and 1.4mA leakage current limits are acceptable for your application's regulatory compliance requirements. Cross-reference the certification marks (cURus, ENEC, VDE) against local market regulations.

Selection Notes

Select this model when a single-phase EMI filter with a 16A capacity is needed for chassis-mounted installations. It is suitable for environments requiring certified safety compliance in both North American and European markets. Consider the thermal performance up to 100°C and the low leakage current specification for sensitive electronic loads. Evaluate the physical footprint against available space in the equipment enclosure.

Part Context

This component belongs to the FSS series of AC power line filters manufactured by Schurter Inc. The series focuses on providing reliable noise attenuation for various electronic systems. The 5500.2057 variant specifically addresses higher current requirements compared to lower-rated models in the same family, offering a balance between performance and compact chassis-mount design.

Replacement Considerations

Public confirmed substitute part numbers: None identified.
