5500.206

Overview

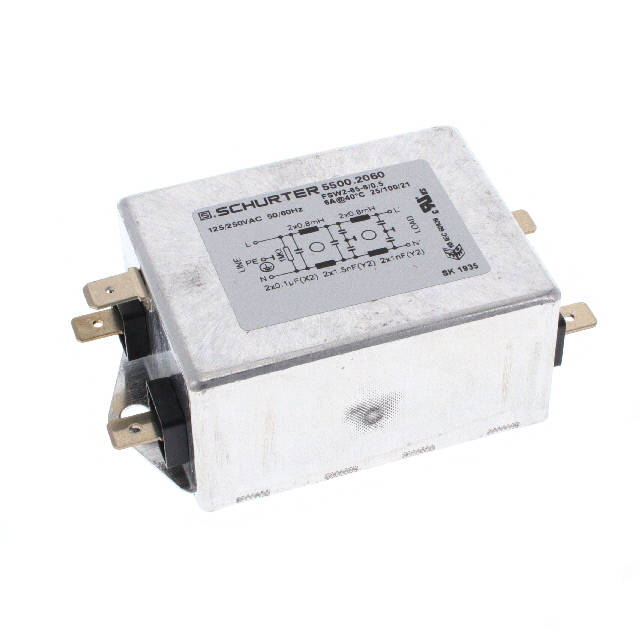

The Schurter 5500.206 is a two-stage power line filter designed for single-phase applications. It supports voltage ratings of 125 VAC and 250 VAC with a current rating of 6 A. The unit utilizes screw termination and chassis mount installation. Operating at 50 Hz or 60 Hz, it features low leakage current and complies with UL, CSA, VDE, and EN standards.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Screw terminal connections for secure mounting
• Chassis mount design for industrial integration

Applications

• Industrial machinery power conditioning
• Medical equipment EMI reduction
• Power supply input filtering

Procurement Notes

Verify the specific datasheet revision to confirm exact inductance values and physical dimensions before integration. Ensure the screw termination type matches the existing panel layout. Confirm compliance requirements align with target market regulations. Check lead times as production cycles may vary.

Selection Notes

Select this component when high attenuation is required for single-phase AC lines. The two-stage design offers superior performance compared to single-stage alternatives. Verify that the 6 A current rating meets the load requirements. Ensure chassis mounting space accommodates the unit's footprint.

Part Context

This part belongs to the Schurter FSW series of power line filters. The series provides various configurations for different current and voltage needs. The 5500.206 specifically addresses applications requiring robust two-stage filtering with standard industrial connection methods.

Replacement Considerations

Consult official substitution lists for equivalent two-stage filters. Verify that any replacement maintains the same current and voltage ratings. Ensure mechanical compatibility for chassis mounting and screw terminals.
