5500.2061

Overview

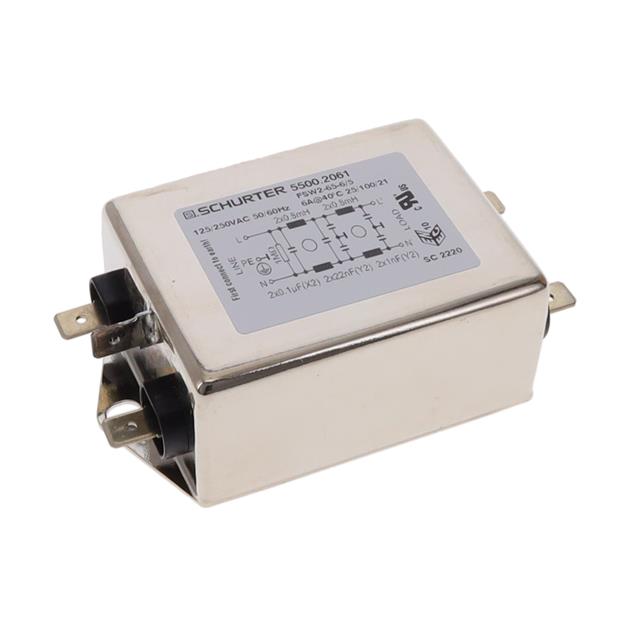

The Schurter 5500.2061 is a single-phase EMC/EMI power line filter from the FSW series, rated for 6A at 125VAC and 250VAC with a working frequency of 50Hz or 60Hz. It features chassis mount installation and quick connect termination style. The component has an inductance of 800µH and complies with RoHS3 standards.

Feature Summary

• Provides electromagnetic interference suppression for single-phase AC power lines
• Utilizes quick connect termination style for simplified circuit integration
• Designed for chassis mounting to ensure secure physical installation

Applications

• Industrial control systems requiring EMI filtering
• Medical equipment power input stages
• Consumer electronics power supplies

Procurement Notes

Verify the specific voltage rating (125VAC vs 250VAC) required for your application against the datasheet specifications. Confirm that the quick connect terminal dimensions match your PCB or wire harness connectors. Ensure the chassis mounting holes align with your enclosure design before finalizing the order.

Selection Notes

Select this model when a single-stage filter solution is sufficient for your noise attenuation requirements. The 6A current rating suits moderate power applications. Consider the 800µH inductance value for compatibility with your system's impedance matching needs. Verify environmental compliance requirements such as RoHS3 adherence.

Part Context

This component belongs to Schurter's FSW series of power line filters. It serves as an EMI suppression device for AC mains inputs. The product is manufactured by Schurter Inc., a recognized provider of electronic components and systems.

Replacement Considerations

Cross-reference with other single-stage 6A filters from the same manufacturer if availability is constrained. Ensure substitute parts maintain identical termination styles and mounting configurations to avoid mechanical redesign.
