5500.2062

Overview

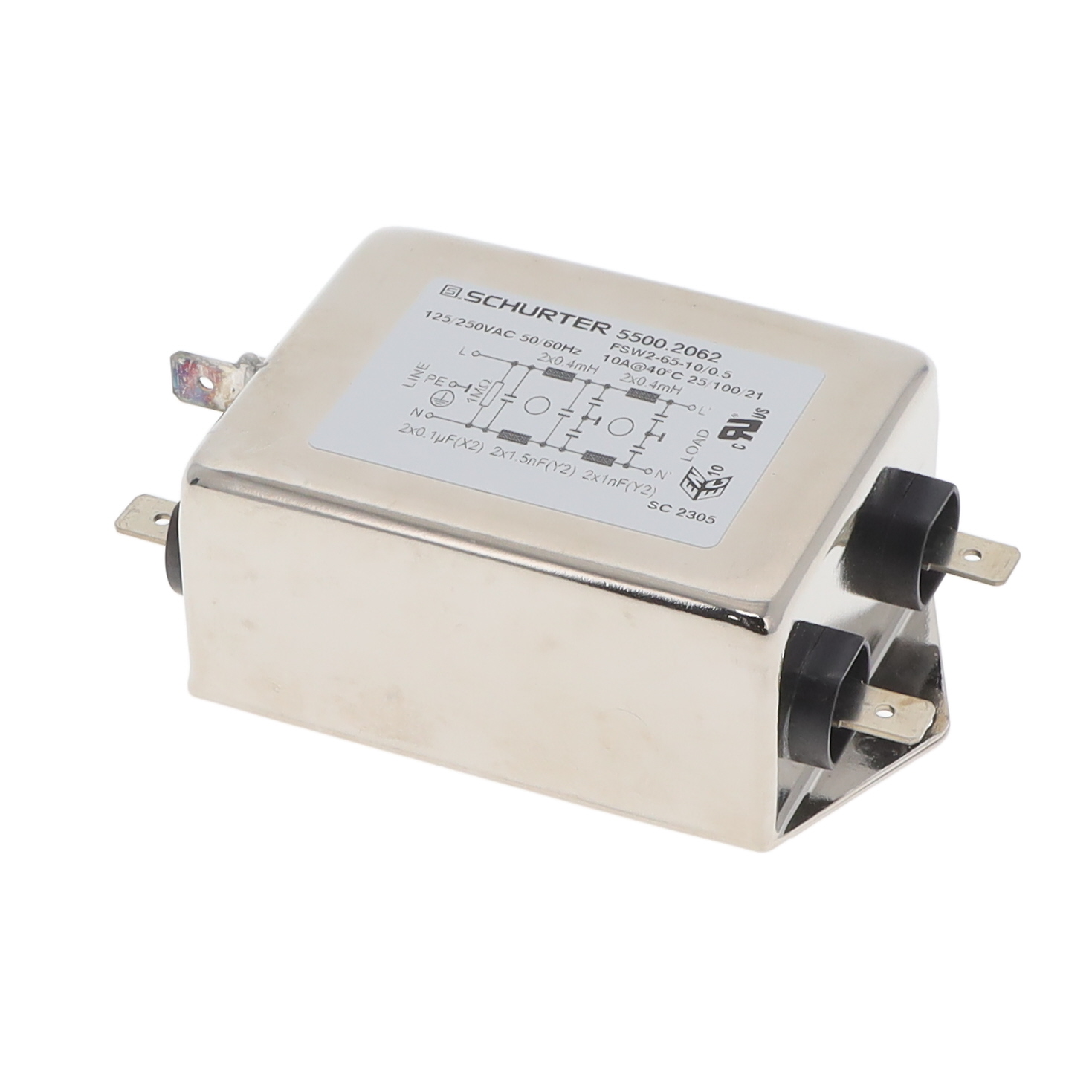

The Schurter 5500.2062 is a single-phase, two-stage AC power line filter designed for chassis or panel mounting. It supports rated voltages of 125 VAC and 250 VAC with a current rating of 10 A. The component operates at frequencies of 50 Hz and 60 Hz within a temperature range up to 100 °C. It utilizes screw-type terminals for electrical connection and complies with UL, CSA, VDE, and EN standards.

Feature Summary

• Two-stage filtering architecture for enhanced electromagnetic interference suppression
• Dual voltage rating capability supporting both 125 VAC and 250 VAC systems
• Robust chassis or panel mounting configuration for secure installation

Applications

• Industrial machinery power input stages
• Medical equipment power supplies
• Commercial IT infrastructure units

Procurement Notes

Verify the specific terminal type and mechanical dimensions against the official datasheet before integration. Confirm that the required certification marks (UL, CSA, VDE, EN) are present on the unit documentation. Ensure the operating environment temperature does not exceed the specified maximum limit of 100 °C during continuous operation.

Selection Notes

Select this model when a two-stage filter is required for 10 A applications at 250 VAC. Compare leakage current specifications if sensitive medical or audio equipment is involved. Verify that the screw terminal interface matches the existing wiring harness or busbar design constraints in the enclosure layout.

Part Context

This component belongs to the Schurter power line filter portfolio, which provides EMI suppression solutions for global markets. The 5500 series typically offers robust construction suitable for demanding industrial environments. It addresses regulatory compliance requirements for conducted emissions in electronic devices.

Replacement Considerations

Consult the manufacturer's cross-reference guide for verified substitutes. Ensure any replacement maintains the same two-stage topology and current rating.
