5500.2064

Overview

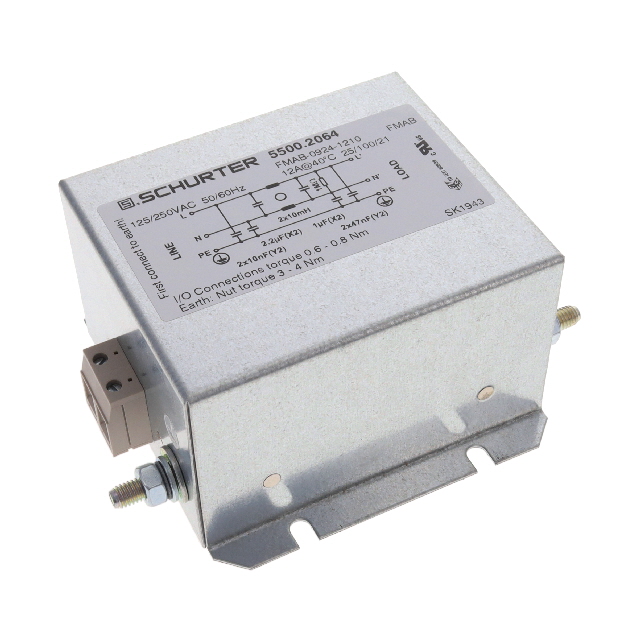

The SCHURTER 5500.2064 is a single-phase EMC/EMI power line filter module designed for chassis mounting. It features a single-stage filtering architecture with screw terminal connections. The component supports a rated voltage of 125 VAC and 250 VAC, operating at frequencies of 50 Hz and 60 Hz. It provides a current rating of 12 A. The unit is certified under UL standards.

Feature Summary

• Single-stage EMI/EMC filtering for single-phase AC power lines
• Chassis mount installation style with screw terminals
• Certified to UL safety standards

Applications

• Industrial equipment power conditioning
• Medical device power supplies
• General electronic apparatus noise suppression

Procurement Notes

Verify the specific datasheet version for leakage current limits and insertion loss characteristics before integration. Confirm that the screw terminal type matches the assembly tooling requirements. Ensure the chassis mounting holes align with the mechanical drawing specifications provided in the official Schurter documentation.

Selection Notes

Select this model when a single-stage solution is sufficient for the required attenuation levels. The 12 A rating suits moderate power applications. Verify that the 250 VAC rating meets the system's maximum line voltage. Consider the physical dimensions and weight constraints for the final enclosure design.

Part Context

This component belongs to the SCHURTER 5500 series of power line filters. These modules are engineered for robust performance in industrial environments. The series offers various current ratings and stage configurations to address different electromagnetic interference challenges across global markets.

Replacement Considerations

Consult the official Schurter cross-reference list for verified substitutes. Ensure any replacement maintains the same 12 A rating, 250 VAC voltage, and single-stage topology. Mechanical compatibility must be validated against the chassis mounting points.
