5500.2065

Overview

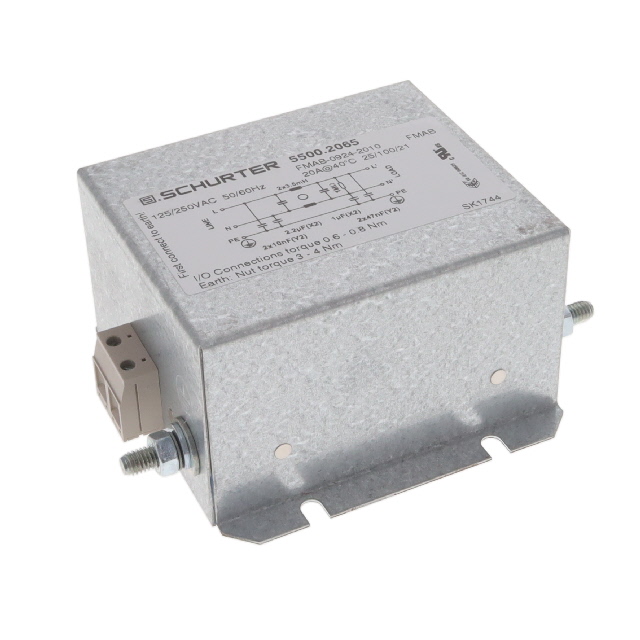

The Schurter 5500.2065 is a single-phase, single-stage power line filter module designed for general-purpose electromagnetic interference suppression. It supports rated AC voltages of 125V and 250V with a continuous current rating of 20A. The unit features an inductance of 3.5mH and utilizes terminal block termination for secure electrical connections. Operating within a temperature range of -25°C to 100°C at 60Hz, it employs chassis mount installation methods.

Feature Summary

• Single-stage filtering configuration for standard EMI noise reduction
• Terminal block termination style for robust connection integrity
• Chassis mount design facilitating direct panel integration

Applications

• General purpose electronic equipment power conditioning
• Industrial control system input stages
• Power supply unit input filtering

Procurement Notes

Verify the specific voltage rating (125V or 250V) required for your application against the datasheet specifications. Confirm that the terminal block interface matches your wiring harness or busbar setup. Ensure the chassis mounting dimensions align with your enclosure design constraints before finalizing procurement.

Selection Notes

Select this component when a single-stage solution suffices for your EMI requirements. The 20A current rating accommodates moderate load applications. Consider the terminal block termination if screw-down wiring is preferred over quick-connect pins. Verify thermal management capabilities given the 100°C maximum operating temperature limit.

Part Context

This model belongs to Schurter's power line filter modules series. It represents a compact solution for single-phase AC line filtering. The product focuses on providing essential noise attenuation without complex multi-stage architectures. It serves as a fundamental component for basic power quality improvement in various electrical systems.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
