5500.2066

Overview

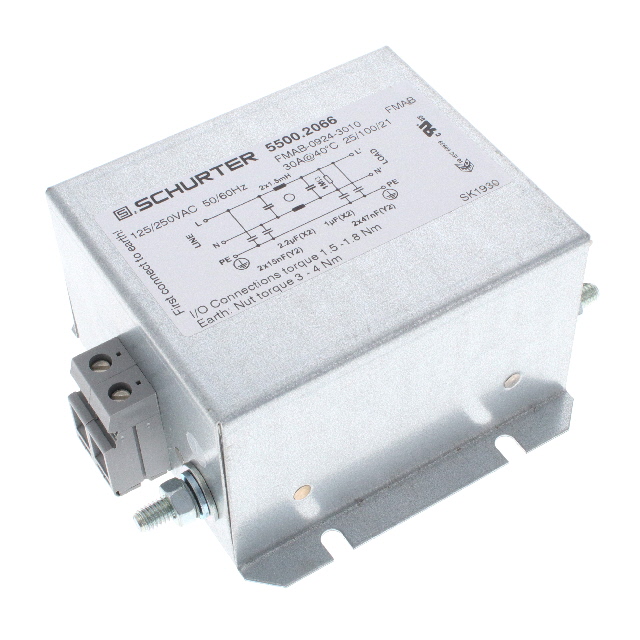

The SCHURTER Inc. 5500.2066 is a single-phase, single-stage power line filter module designed for general-purpose applications. It features a rated current of 30 A and supports voltage ratings of 125 VAC and 250 VAC. The unit provides broad-band attenuation with an inductance of 1.5 mH. It operates within a temperature range of -25°C to 100°C and utilizes chassis mount installation with screw termination.

Feature Summary

• Provides broad-band electromagnetic interference (EMI) attenuation for AC power lines
• Designed for single-phase circuit protection and noise suppression
• Supports high current capacity suitable for demanding industrial loads

Applications

• General purpose electronic equipment requiring EMI filtering
• Industrial machinery control panels
• Power distribution units

Procurement Notes

Verify the specific termination style and mounting hardware requirements against the official datasheet before procurement. Confirm that the 30 A current rating and 1.5 mH inductance align with the system's electrical design constraints. Ensure compatibility with the intended chassis mounting configuration and operating temperature environment.

Selection Notes

Select this component when a robust, single-stage solution is required for high-current AC applications. The 30 A rating distinguishes it from lower-capacity models in the series. Consider the broad-band attenuation characteristics for environments with diverse noise profiles. Verify that the physical dimensions and terminal types match the enclosure layout.

Part Context

This model belongs to Schurter’s FMAB series of power line filters. These modules are engineered for durability and consistent performance in industrial settings. The series offers various current ratings and configurations to suit different power conditioning needs while maintaining compliance with international safety standards.

Replacement Considerations

Consult official substitution lists for equivalent single-stage filters with matching 30 A ratings. Verify that any alternative part maintains the same 1.5 mH inductance and chassis mount form factor to ensure mechanical and electrical compatibility.
