5500.2067

Overview

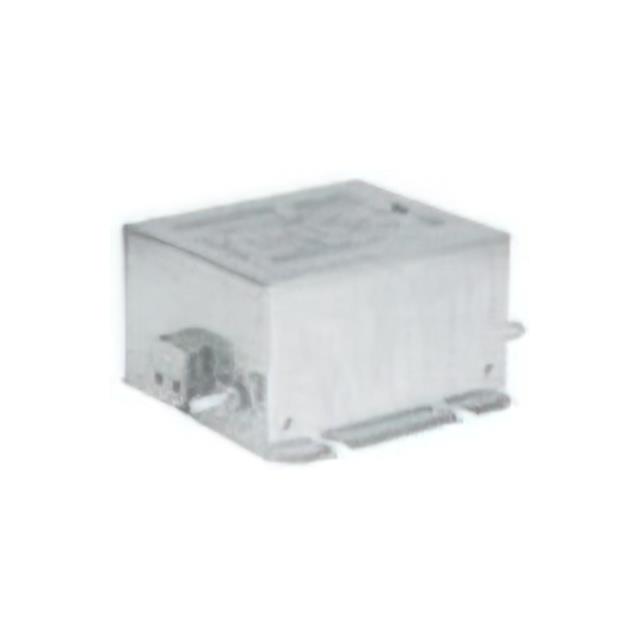

The SCHURTER 5500.2067 is a single-phase EMC/EMI power line filter designed for industrial applications. It supports voltage ratings of 125 VAC and 250 VAC with a current rating of 50 A at 50 Hz or 60 Hz. The unit utilizes a single-stage filtering topology and features chassis mounting via terminal block connections and threaded M6 posts.

Feature Summary

• Single-stage EMI/EMC filtering for noise suppression
• High current capacity suitable for heavy-duty equipment
• Robust mechanical construction with flange mount design

Applications

• Industrial machinery power conditioning
• Medical equipment power supplies
• Automotive testing systems

Procurement Notes

Verify the specific voltage and current requirements against the datasheet before ordering. Confirm that the installation environment accommodates the thermal characteristics of a 50 A rated component. Ensure compatibility with the required terminal block wiring method and M6 threaded post mounting style for secure integration.

Selection Notes

Select this model when high-current single-phase filtering is required in a compact chassis-mount form factor. Consider the leakage current specifications and insulation requirements relative to the connected load. Evaluate the physical dimensions and mounting hole patterns to ensure fit within the designated enclosure space.

Part Context

This component belongs to Schurter's FMLB series of power line filters, which are engineered for robust performance in demanding environments. The series offers various current ratings and stage configurations to meet diverse electromagnetic compatibility standards for global industrial markets.

Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model.
