5500.2068

Overview

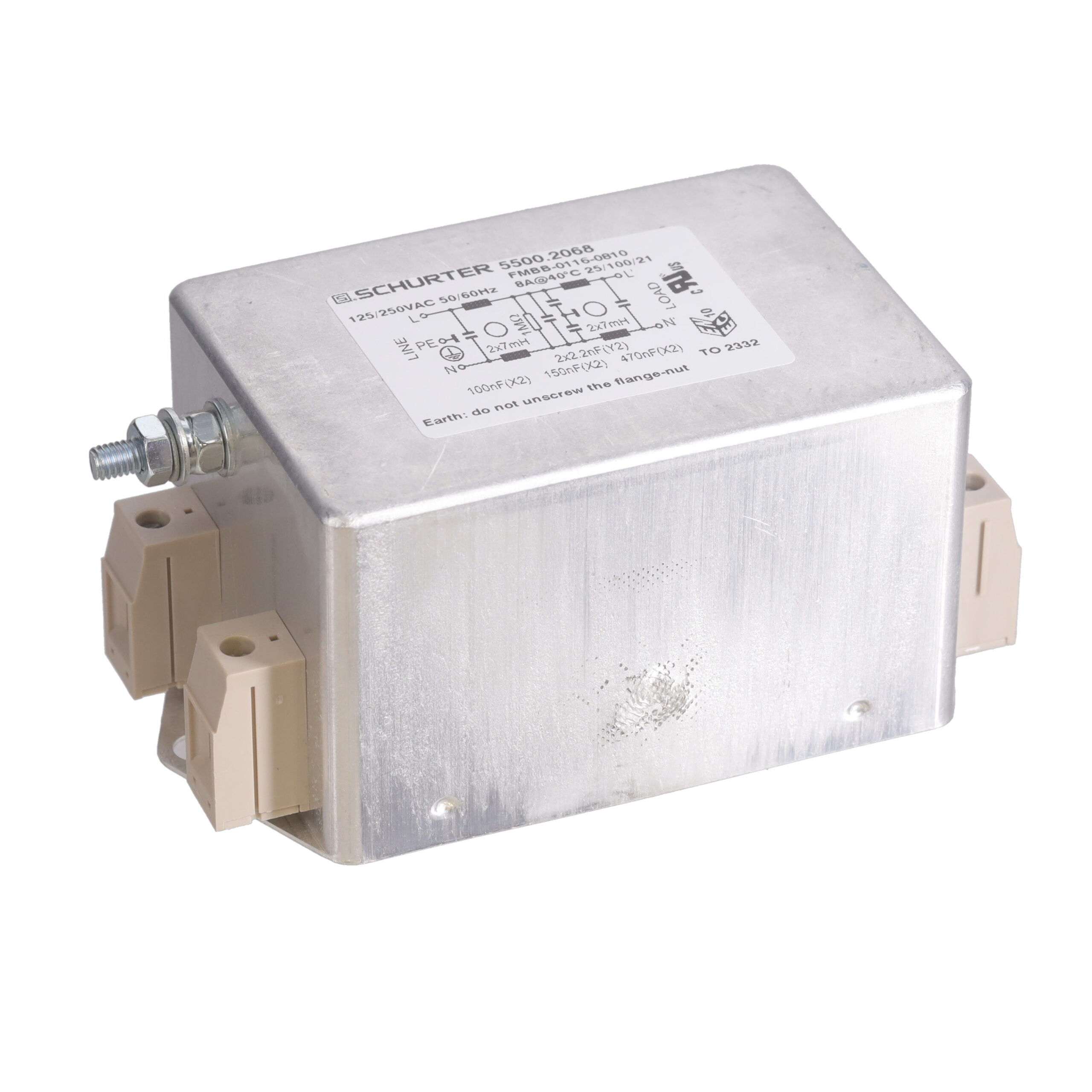

The Schurter 5500.2068 is a single-phase, two-stage power line filter from the FMBB series. It features an 8 A current rating and supports voltage ratings of 125 VAC and 250 VAC. Designed for chassis mounting with screw termination, it operates at 50 Hz and 60 Hz frequencies. The unit has a leakage current of 250 uA and weighs 410 g. It holds UL, CSA, VDE, and EN compliance certifications.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount design with screw terminal connections
• Compliance with major international safety standards

Applications

• Industrial machinery power conditioning
• Medical equipment EMI suppression
• Test and measurement instrument protection

Procurement Notes

Verify that the specific order matches the 5500.2068 part number to ensure correct 8 A rating and two-stage configuration. Confirm chassis mounting requirements align with the screw termination style. Check for updated compliance documentation such as UL, CSA, VDE, and EN certificates before finalizing procurement decisions.

Selection Notes

Select this component when a two-stage filter is required for 8 A applications. Ensure the installation environment supports chassis mounting and screw terminations. Verify that the 250 uA leakage current meets system safety limits. Compare against single-stage alternatives if lower attenuation is acceptable.

Part Context

This component belongs to the FMBB series of power line filters by Schurter. It is designed for general-purpose electromagnetic interference suppression in single-phase AC circuits. The series offers various current ratings and stage configurations to suit different industrial and commercial power quality requirements.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
