5500.2069

Overview

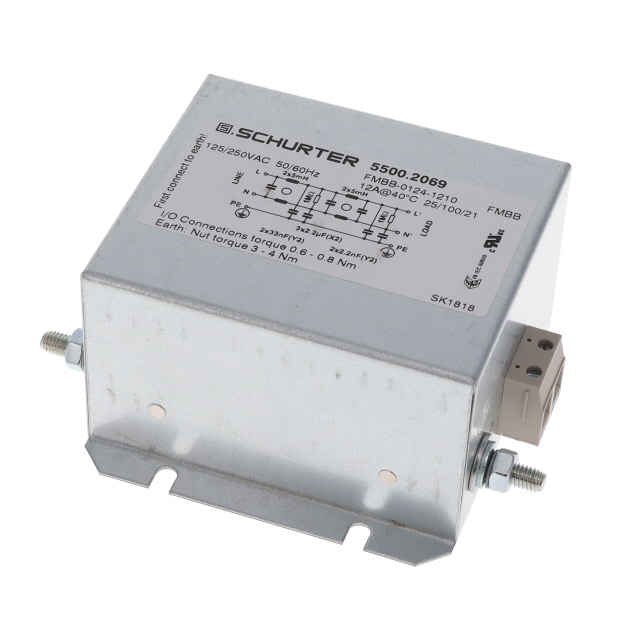

The SCHURTER 5500.2069 is a single-phase, two-stage EMI/EMI line filter designed for AC power applications. It features a rated current of 12 A and operates at frequencies of 50 Hz or 60 Hz with voltage ratings of 125 VAC and 250 VAC. The component utilizes a terminal connection style and incorporates an inductance of 5 mH with a resistance of 500 uΩ. This chassis-mount filter provides anti-interference capabilities suitable for standard industrial and commercial power conditioning environments.

Feature Summary

• Two-stage filtering configuration for enhanced noise suppression
• Single-phase design optimized for standard AC power lines
• Terminal-based electrical connections for secure integration

Applications

• Industrial machinery power input stages
• Commercial equipment EMI mitigation
• General AC power line protection

Procurement Notes

Verify the specific datasheet version to confirm exact leakage current values and compliance certifications such as UL or VDE. Ensure the terminal type matches the system wiring requirements. Confirm that the 12 A current rating aligns with the load specifications. Check for any specific mounting hardware requirements associated with the chassis mount style.

Selection Notes

Select this model when a two-stage attenuation profile is required for single-phase systems. The 12 A rating suits moderate power loads. Verify that the 5 mH inductance meets the circuit's impedance needs. Compare against single-stage alternatives if space constraints are less critical than cost. Ensure the operating frequency range covers both 50 Hz and 60 Hz networks.

Part Context

This component belongs to the SCHURTER 5500 series of power line filters. The series offers various configurations including single-stage and multi-stage options with different current ratings. The 5500.2069 specifically addresses applications requiring higher current handling (12 A) compared to lower-rated variants like the 5500.2035 (6 A).

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer for direct equivalents or cross-reference based on strict electrical parameter matching.
