5500.207

Overview

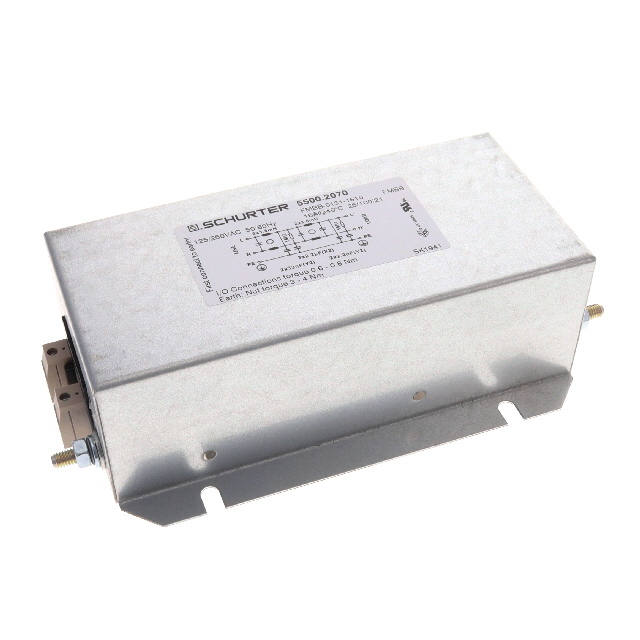

The Schurter 5500.207 is a single-phase power line filter belonging to the FMLB series, designed for chassis mounting applications. It operates at rated voltages of 125 VAC and 250 VAC with a current rating of 1 A. The unit features quick connect terminals and exhibits a leakage current of 5 uA. Certified under UL standards, this component functions within a frequency range of 50 Hz and 60 Hz. It weighs approximately 50 g and is classified as a one-stage medium-performance filter suitable for general power conditioning tasks.

Feature Summary

• Single-stage electromagnetic interference suppression architecture
• Low leakage current design for safety compliance
• Chassis mount construction with quick connect termination

Applications

• Medical equipment power input stages
• Industrial control panel power conditioning
• Consumer electronics EMI mitigation

Procurement Notes

Verify the specific suffix code against official documentation to confirm terminal type and certification status. Confirm lead times directly with authorized distributors as production schedules vary. Ensure the voltage rating matches the target application circuit requirements before procurement.

Selection Notes

Select this model for low-current applications requiring minimal leakage current. Compare against higher current variants in the same series if load demands exceed 1 A. Verify chassis mounting dimensions and terminal spacing against the enclosure design constraints.

Part Context

This component belongs to the Schurter FMLB series of single-phase power line filters. The series offers various current ratings and stage configurations to address different EMI suppression needs across industrial and commercial sectors.

Replacement Considerations

Consult official cross-reference lists for verified substitutes. Ensure replacement parts match the 1 A rating, 125/250 VAC voltage specifications, and quick connect terminal configuration.
