5500.2071

Overview

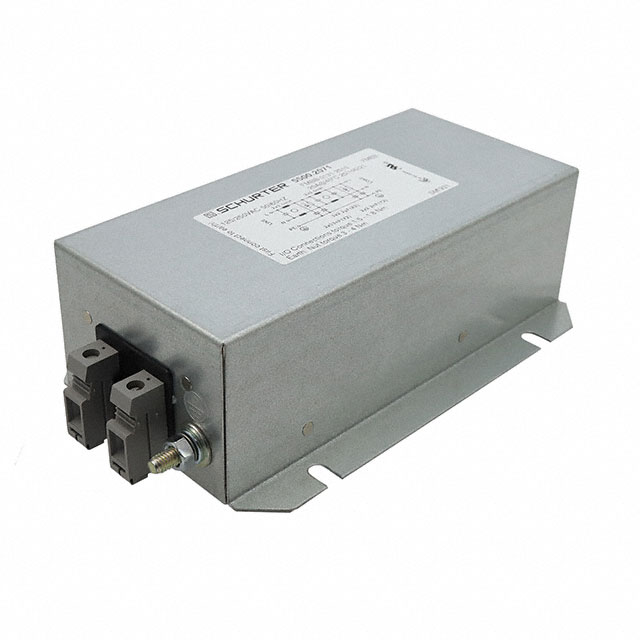

The SCHURTER 5500.2071 is a single-phase, two-stage power line filter designed for chassis mounting with screw terminal connections. It supports voltage ratings of 125 VAC and 250 VAC at operating frequencies of 50 Hz and 60 Hz. The unit handles a rated current of 25 A with a leakage current of 3.5 mA. It features broad-band attenuation characteristics and holds UL, CSA, VDE, and EN compliance certifications.

Feature Summary

• Two-stage filtering architecture providing broad-band electromagnetic interference attenuation
• Chassis mount construction utilizing screw terminals for secure electrical interconnection
• Certified to multiple international safety standards including UL, CSA, VDE, and EN

Applications

• Industrial machinery power conditioning
• Medical equipment input stages
• Test and measurement instrumentation

Procurement Notes

Verify the specific datasheet revision matches your design requirements before ordering. Confirm that the chassis mounting dimensions and screw terminal specifications align with your enclosure layout. Ensure the 25 A current rating and 3.5 mA leakage current are acceptable for your system's safety ground limits. Cross-reference the UL and VDE certification numbers directly on the manufacturer's website to validate regulatory status for your target market.

Selection Notes

Select this component when high current capacity is required alongside robust noise suppression. The two-stage design offers superior attenuation compared to single-stage alternatives. Verify that the physical size fits within the available chassis space. Consider the screw terminal interface if quick-connect options are unsuitable for the application environment.

Part Context

This part belongs to the FMBB series of power line filters from Schurter. The series focuses on high-current applications requiring reliable EMI/EMC performance. It complements other models in the lineup that offer different current ratings or terminal configurations while maintaining similar mounting styles.

Replacement Considerations

Consult official Schurter documentation for verified substitute part numbers. Do not assume cross-compatibility with generic filters due to specific certification and attenuation requirements.
