5500.2072

Overview

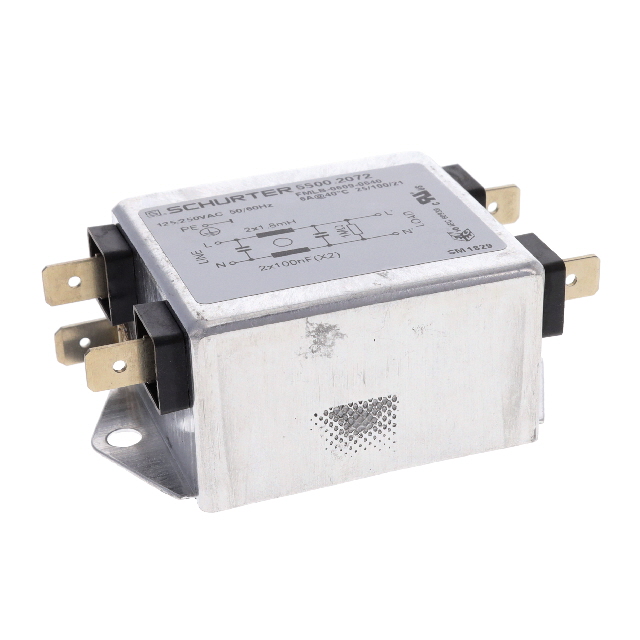

The SCHURTER 5500.2072 is a single-phase, single-stage power line filter designed for electromagnetic interference suppression. It features a rated current of 6 A and supports voltage ratings of 125 VAC and 250 VAC at operating frequencies of 50 Hz and 60 Hz. The component utilizes quick connect terminals for circuit integration and is certified under UL standards.

Feature Summary

• Single-stage filtering architecture for EMI/EMI noise reduction
• Quick connect terminal interface for simplified assembly
• Dual voltage rating capability for flexible deployment

Applications

• Industrial equipment power conditioning
• Medical device power supply input stages
• Consumer electronics EMC compliance

Procurement Notes

Verify the specific datasheet revision to confirm leakage current values and insertion loss characteristics required for your design. Ensure that the quick connect terminal dimensions match your PCB or wire harness specifications. Confirm UL certification status matches the regulatory requirements of the target market before finalizing procurement.

Selection Notes

Select this model when a compact single-stage solution is sufficient for moderate noise attenuation needs. The 6 A rating suits applications with lower power consumption profiles. Verify that the chassis mounting style aligns with the available space in the enclosure design.

Part Context

This component belongs to the Schurter power line filter portfolio, which provides various configurations for global markets. The 5500 series typically offers standardized form factors for easy integration into existing power entry modules or standalone filter assemblies.

Replacement Considerations

Consult official Schurter documentation for direct cross-references. Alternative models within the same series may offer different current ratings or terminal types.
