5500.2076

Overview

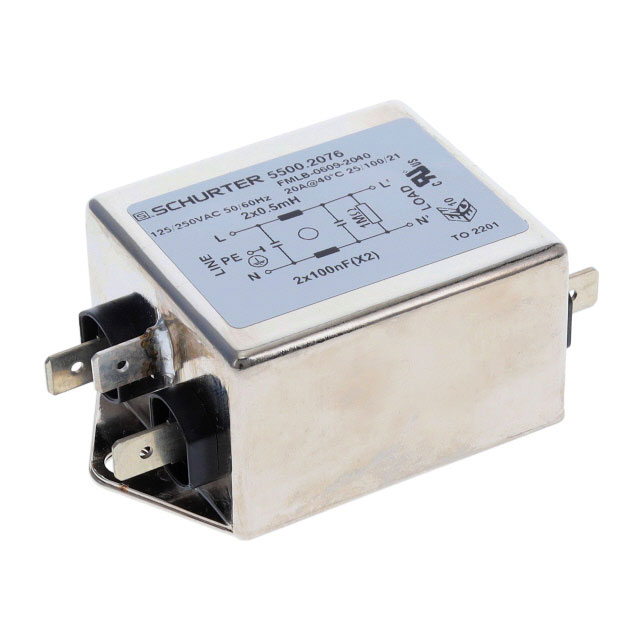

The Schurter 5500.2076 is a single-phase, single-stage power line filter designed for AC mains applications. It features a rated current of 20 A and supports voltage ratings of 125 VAC and 250 VAC. The component operates at standard frequencies of 50 Hz and 60 Hz. It utilizes a chassis mount installation style with screw terminals for secure connection. The unit complies with UL, CSA, VDE, and EN safety standards.

Feature Summary

• Single-stage EMI/EMI filtering architecture
• Chassis mount construction for panel integration
• Screw terminal termination method

Applications

• Industrial equipment power input stages
• Medical device power supplies
• General purpose AC power conditioning

Procurement Notes

Verify the specific datasheet revision to confirm exact leakage current values and attenuation curves, as these parameters vary by configuration. Ensure the mounting hardware matches the chassis thickness and terminal spacing requirements. Confirm compliance certifications required for the target market are included in the final product documentation before procurement.

Selection Notes

Select this model when a 20 A continuous current rating is required for single-phase AC lines. The FMLB series designation indicates a cost-optimized design suitable for general applications where extreme miniaturization is not critical. Verify that the screw terminal interface aligns with existing PCB or busbar layouts.

Part Context

This component belongs to the Schurter 5500 series of AC power line filters. The series offers various current ratings and stage configurations to suit different noise suppression needs. The 5500.2076 specifically addresses mid-range current applications requiring robust mechanical mounting and broad international certification coverage.

Replacement Considerations

Cross-reference with other Schurter FMLB series parts for current adjustments. Verify pinout and mounting dimensions against competitors like TE Connectivity or Bel Fuse if substituting brands.
