5500.2082

Overview

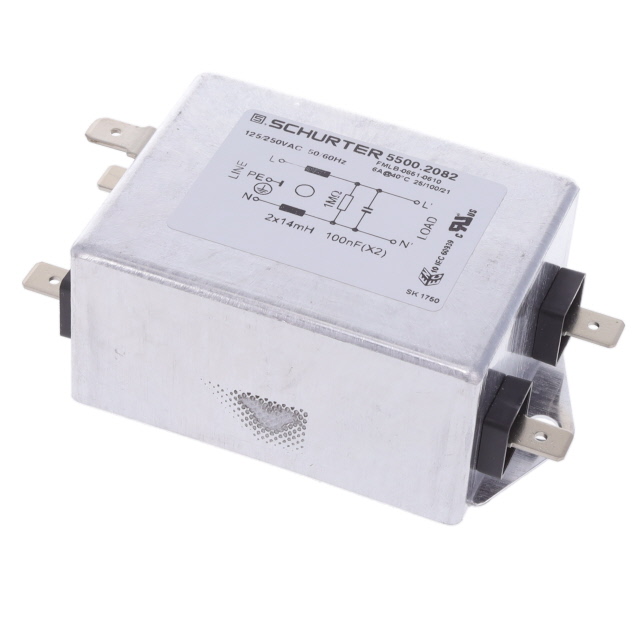

The SCHURTER 5500.2082 is a single-phase, single-stage power line filter designed for chassis mounting. It supports voltage ratings of 125 VAC and 250 VAC with a current rating of 6 A at 40°C. The unit features quick connect terminals and utilizes two 14 mH inductors. It operates at 50 Hz or 60 Hz frequencies and maintains a maximum leakage current of 5 µA at 250 VAC.

Feature Summary

• Single-stage EMI/EMC filtering architecture
• Low leakage current design for safety compliance
• Chassis mount construction for stable installation

Applications

• Industrial equipment power conditioning
• Medical device power supplies
• Electronic test and measurement instruments

Procurement Notes

Verify the specific datasheet version to confirm exact physical dimensions and terminal pitch compatibility with your chassis layout. Ensure the operating environment temperature does not exceed the rated limits for the 6 A current capacity. Cross-reference certification marks such as UL or VDE against regional regulatory requirements before finalizing procurement.

Selection Notes

Select this component when a compact single-stage solution is required for 6 A applications. The low leakage current specification makes it suitable for sensitive medical or precision electronic environments where safety isolation is critical. Verify that the quick connect terminal style matches existing wiring harnesses.

Part Context

This part belongs to the SCHURTER 5500 series of power line filters. The series offers various configurations including single and multi-stage options with different current ratings and terminal types. The 5500.2082 specifically addresses needs for moderate current filtering with minimal leakage.

Replacement Considerations

Direct substitutes include other Schurter FMLB series components with matching 6 A ratings and 14 mH inductance. Verify terminal type and mounting hole patterns when considering alternatives from other manufacturers.
