5500.2084

Overview

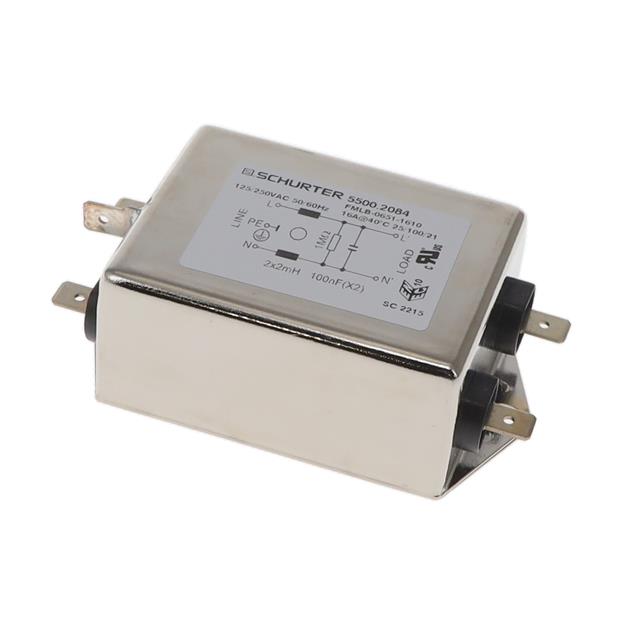

The SCHURTER 5500.2084 is a single-phase, single-stage power line filter designed for chassis mounting. It supports a rated current of 16 A and operates at voltage ratings of 125 VAC and 250 VAC with a frequency range of 50 Hz to 60 Hz. The component utilizes quick connect terminals for electrical termination and functions within an operating temperature range of -25°C to 100°C.

Feature Summary

• Single-stage electromagnetic interference suppression architecture
• Chassis mount mechanical configuration
• Quick connect terminal interface

Applications

• Industrial equipment power conditioning
• Medical device power supply filtering
• General electronic apparatus EMI reduction

Procurement Notes

Verify the specific datasheet version to confirm compliance certifications such as UL or VDE. Ensure the quick connect terminal dimensions match the mating connector specifications. Confirm that the 16 A current rating aligns with the system's maximum load requirements under all operating conditions.

Selection Notes

Select this model when a single-stage filter solution is sufficient for the application's noise attenuation needs. The 16 A rating makes it suitable for moderate power applications. Verify that the chassis mounting style fits the available enclosure space and that the quick connect terminals are compatible with the wiring harness design.

Part Context

This component belongs to the SCHURTER power line filter portfolio, which provides EMC/EMI solutions for various industrial and commercial applications. The 5500 series typically offers robust filtering capabilities in compact form factors, supporting global regulatory standards for electromagnetic compatibility in power distribution systems.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer for direct equivalents or cross-reference based on identical electrical parameters and mechanical constraints.
