Product Detailed Parameters
- Description：LINE FILTER 125V/250VAC 20A CHAS
- Series：FMLB-51
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：125V, 250V
- Current：20 A
- Frequency - Operating：50/60Hz
- Applications：Medical
- Approval Agency：cURus, ENEC, VDE
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：1.5mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

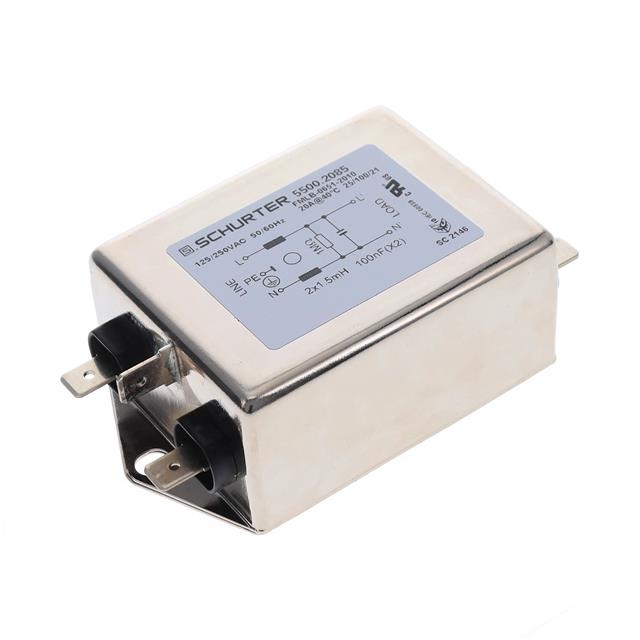

The Schurter 5500.2085 is a single-phase power line filter belonging to the FMLB series, designed for chassis mounting. It features quick connect terminals and operates at frequencies of 50 Hz or 60 Hz with voltage ratings of 125 VAC and 250 VAC. The component has a current rating of 20 A and an operating temperature range from -25°C to 100°C. It includes UL compliance and exhibits a resistance of 1 MOhm.
Feature Summary
- Single-stage EMI filtering architecture
- Chassis mount installation style
- Quick connect terminal interface
Applications
- Power distribution architectures
- Industrial equipment power conditioning
- Medical equipment input stages
Procurement Notes
Verify the specific datasheet version for the 5500.2085 model to confirm exact leakage current and inductance values, as these parameters are critical for safety compliance. Ensure the selected variant matches the required 20 A current rating and 125/250 VAC voltage specifications for your application circuit design.
Selection Notes
Select this component when high current handling up to 20 A is required alongside standard single-phase filtering. The FMLB series offers a balance of performance and compactness suitable for chassis integration. Confirm that the quick connect termination type aligns with the available PCB or wire harness connection methods in the target assembly.
Part Context
This part belongs to the Schurter FMLB series of power line filters, which are engineered for general-purpose EMI suppression. The series provides reliable noise reduction for sensitive electronic loads connected to AC mains. It represents a standard solution for meeting electromagnetic compatibility requirements in various electrical systems.
Replacement Considerations
Check for direct substitutes within the same FMLB series with matching 20 A ratings. Verify that any alternative maintains the same chassis mount footprint and quick connect terminal configuration to ensure mechanical compatibility without redesigning the enclosure.
