5500.2087

Overview

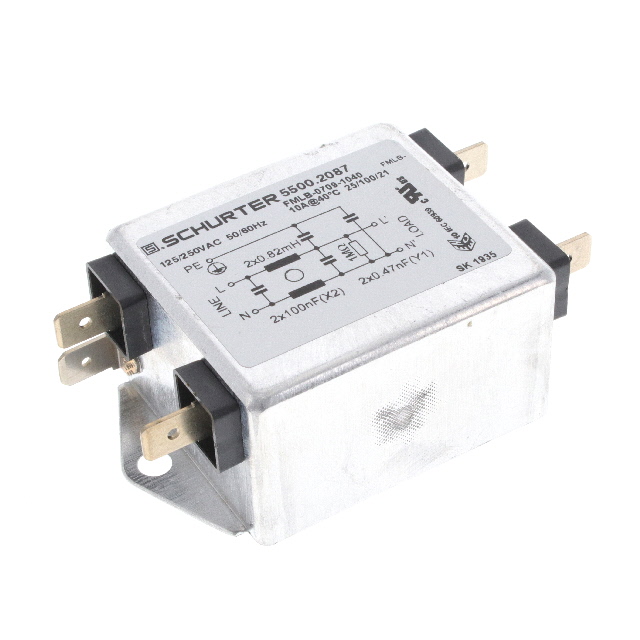

The SCHURTER 5500.2087 is a single-stage, 1-phase power line filter from the FMLB series. It supports voltage ratings of 125 VAC and 250 VAC with a current rating of 10 A. Designed for chassis mounting, it utilizes quick connect terminals. The unit operates at 50 Hz or 60 Hz frequencies and complies with UL standards.

Feature Summary

• Single-stage EMI filtering architecture
• Chassis mount installation style
• Quick connect terminal interface

Applications

• Industrial equipment power conditioning
• Medical device power supplies
• Office automation hardware

Procurement Notes

Verify the specific datasheet version to confirm exact leakage current values and inductance specifications, as these parameters vary within the FMLB series. Ensure the quick connect terminal dimensions match the target PCB or wire harness connectors. Confirm that the chassis mounting hole pattern aligns with the enclosure design before finalizing procurement.

Selection Notes

Select this component when a compact, single-stage solution is required for 10 A applications. The FMLB series offers a balance between size and attenuation performance. Verify that the 125/250 VAC rating meets the system's input voltage requirements. Consider the quick connect termination if space constraints preclude screw terminals.

Part Context

This part belongs to Schurter's FMLB series of power line filters. The series provides various current ratings and stage configurations. The 5500.2087 specifically addresses mid-range current needs with a single-stage topology. It is designed for general-purpose EMI suppression in AC power lines.

Replacement Considerations

Check the FMLB series catalog for other 10 A single-stage variants. Verify compatibility with existing mounting holes and terminal types. Ensure replacement parts maintain the same voltage and frequency ratings.
