5500.2088

Overview

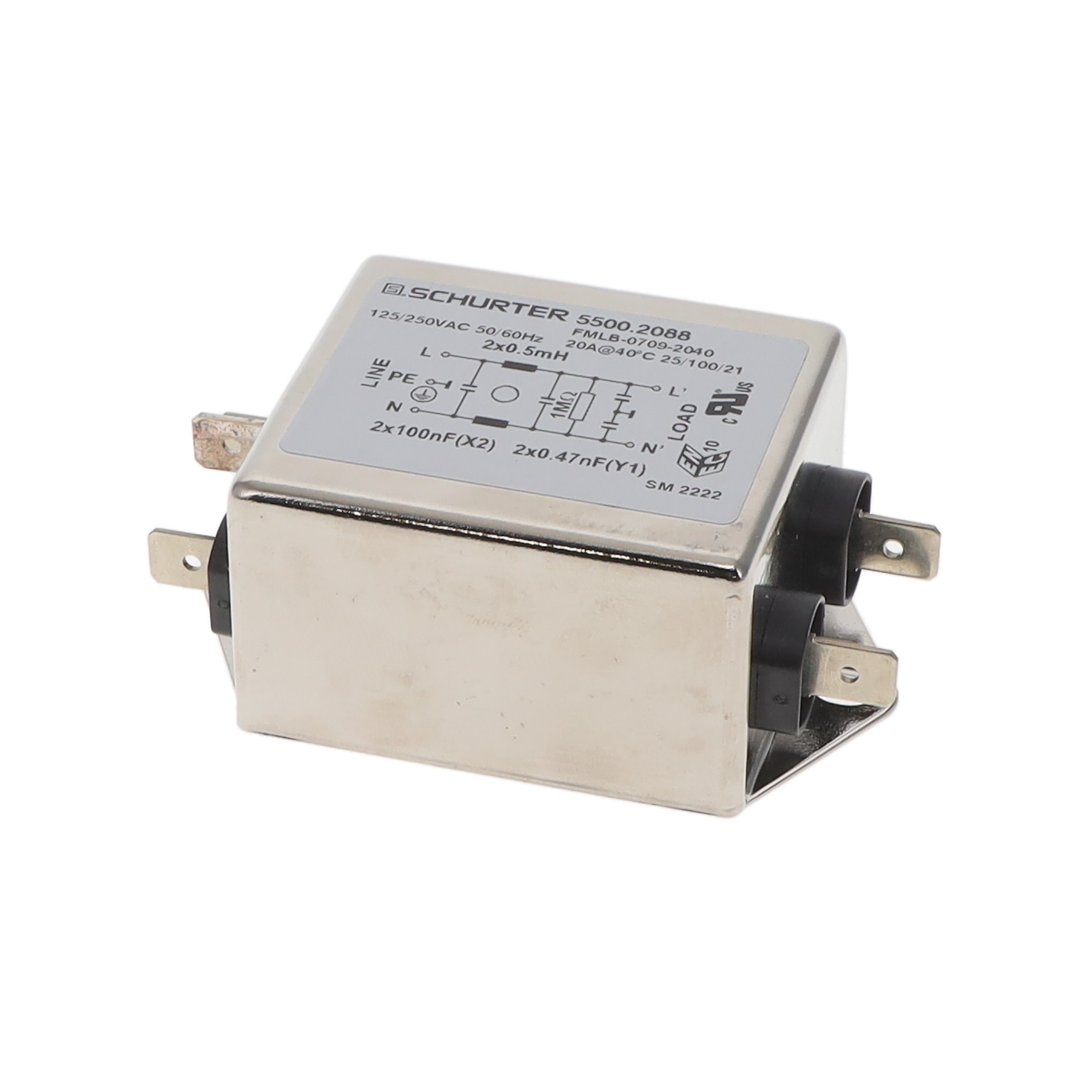

The SCHURTER 5500.2088 is a single-phase, single-stage power line filter module designed for chassis mounting. It supports a rated current of 20 A and operates at voltages up to 250 VAC across 50 Hz and 60 Hz frequencies. The unit features quick connect terminals and includes an inductance of 500 µH. Certified by UL, it is specifically configured for medical applications.

Feature Summary

• Single-stage EMC/EMI filtering configuration
• Quick connect terminal interface
• Chassis mount installation style

Applications

• Medical equipment power conditioning

Procurement Notes

Verify the specific datasheet version for the 5500.2088 to confirm compliance with current regional safety standards. Ensure that the quick connect terminal specifications match the mating connectors in the target assembly. Confirm that the 20 A continuous current rating aligns with the system's thermal management capabilities.

Selection Notes

Select this component when a compact, single-stage solution is required for low-noise medical environments. The 20 A rating suits moderate power loads where space constraints preclude larger multi-stage units. Verify that the 500 µH inductance provides sufficient attenuation for the specific EMI spectrum present in the application.

Part Context

This part belongs to Schurter's FMLB series of power line filters. The series offers various configurations tailored for different current and voltage requirements. The 5500.2088 represents a specialized variant optimized for medical device integration, emphasizing safety certifications and reliable performance in sensitive electronic environments.

Replacement Considerations

No public confirmed substitute part numbers are available.
