5500.209

Overview

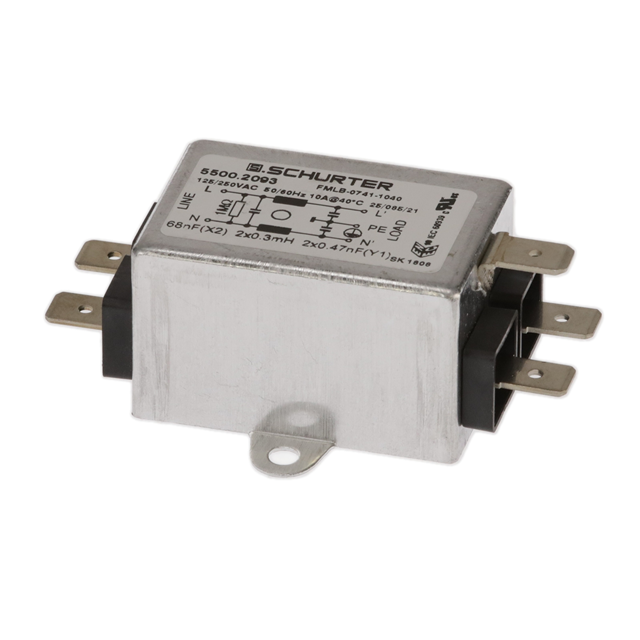

The SCHURTER 5500.209 is a single-phase power line filter module belonging to the FMLB series, designed for chassis mounting applications. It operates at rated voltages of 125 VAC and 250 VAC with a current rating of 4 A. The unit features quick connect terminals and exhibits a maximum leakage current of 240 uA. Certified under UL standards, it functions within a temperature range of -25°C to 100°C at 60 Hz.

Feature Summary

• Single-stage EMI filtering architecture
• Chassis mount installation style
• Quick connect terminal interface

Applications

• Industrial equipment power conditioning
• Medical device power supply input
• General purpose AC power line noise suppression

Procurement Notes

Verify the specific suffix code against official Schurter documentation to confirm exact electrical parameters such as inductance and leakage current. Ensure the selected variant matches the required voltage and current ratings for the target application circuit.

Selection Notes

Select this component when a compact single-stage filter is required for low-current AC lines. Confirm that the quick connect termination type aligns with the PCB or wiring harness design. Verify thermal management requirements given the operational temperature limits.

Part Context

This part belongs to the SCHURTER FMLB series of power line filters. These modules are engineered for general-purpose EMI suppression in single-phase AC circuits. The series offers various current ratings and certification options to meet global regulatory standards.

Replacement Considerations

Consult official cross-reference lists for direct substitutes. Ensure any replacement maintains identical mounting dimensions, terminal types, and certified electrical ratings.
