5500.2093

Overview

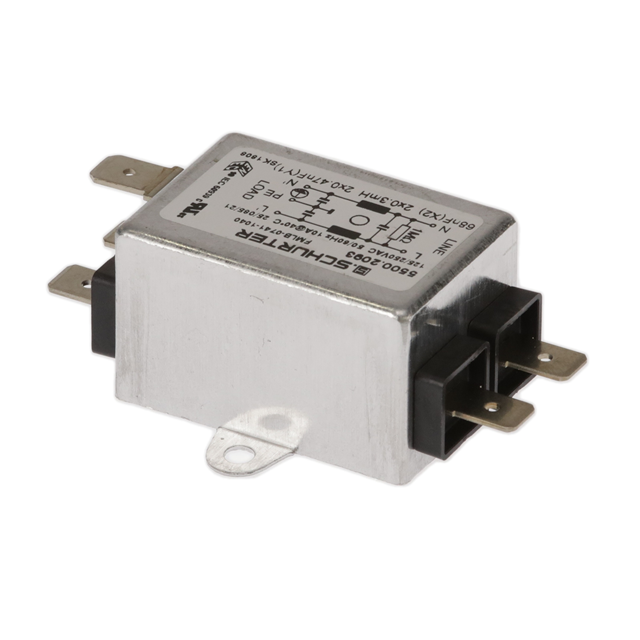

The Schurter 5500.2093 is a single-phase, single-stage power line filter designed for electromagnetic compatibility (EMC) and electromagnetic interference (EMI) suppression. It features a current rating of 10 A and operates at voltages up to 250 V AC across 50 Hz and 60 Hz frequencies. The component utilizes quick connect terminals for circuit attachment and supports chassis mounting configurations. Certified under UL, CSA, VDE, and EN standards, it provides reliable noise filtration for sensitive electronic equipment within specified electrical limits.

Feature Summary

• Single-stage filtering architecture for effective EMI/EMC suppression
• Quick connect terminal interface for simplified circuit integration
• Chassis mount design for secure mechanical installation
• Multi-regulatory certification compliance including UL, CSA, VDE, and EN

Applications

• Industrial control systems requiring EMC compliance
• Medical equipment power input stages
• Information technology hardware power supplies
• General purpose electronic devices needing noise reduction

Procurement Notes

Verify the specific datasheet version against the manufacturer's official documentation to confirm exact attenuation curves and leakage current specifications. Ensure that the quick connect terminal dimensions match the mating connector requirements in the target assembly. Confirm that the chassis mounting hole pattern aligns with the enclosure design before finalizing procurement orders.

Selection Notes

Select this component when a single-stage solution is sufficient for the required noise attenuation levels. The 10 A rating suits moderate power applications, while the 250 V AC rating defines the maximum operating voltage. Consider the physical size constraints associated with chassis mounting and ensure adequate clearance for thermal dissipation during operation.

Part Context

This part belongs to the Schurter power line filter portfolio, specifically engineered for single-phase AC mains applications. It addresses common mode and differential mode noise interference. The product line emphasizes compact form factors suitable for dense electronic enclosures while maintaining robust electrical performance standards for global market deployment.

Replacement Considerations

Consult official Schurter cross-reference guides for verified substitutes. Ensure any replacement maintains identical current ratings, voltage limits, and terminal types to preserve system integrity and safety certifications.
