5500.2094

Overview

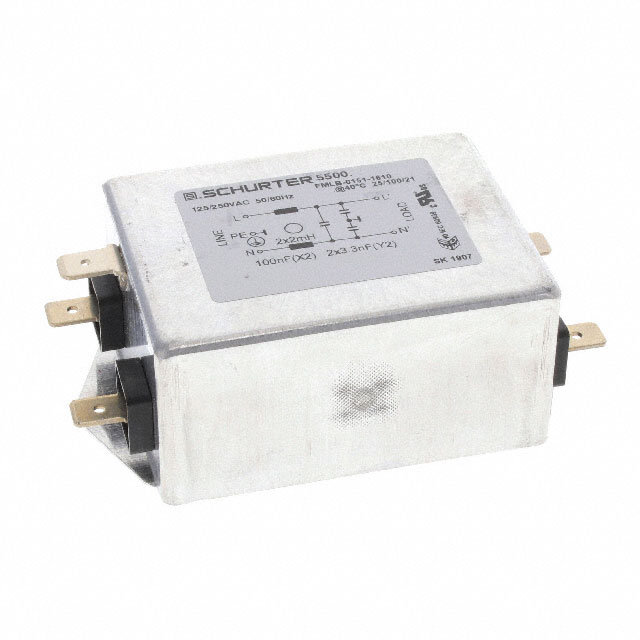

The SCHURTER 5500.2094 is a single-phase, single-stage power line filter designed for chassis mounting. It features a rated current of 6 A and supports voltage ratings of 125 VAC and 250 VAC at operating frequencies of 50 Hz and 60 Hz. The unit utilizes quick connect terminals for circuit attachment and provides an inductance of 14 mH. With a maximum leakage current of 350 uA, it complies with UL standards.

Feature Summary

• Single-stage EMI filtering configuration for single-phase AC power lines
• Chassis mount installation style with quick connect termination
• Certified to UL safety standards for industrial compliance

Applications

• Medical equipment power conditioning
• Industrial machinery noise suppression
• Electronic device EMC mitigation

Procurement Notes

Verify the specific ordering suffix against the official Schurter datasheet to ensure correct terminal type and certification variants. Confirm that the required inductance and current ratings align with the system design specifications before procurement. Check for RoHS compliance status if environmental regulations apply to the final assembly.

Selection Notes

Select this component when a single-stage filter solution is sufficient for the application's electromagnetic interference requirements. Ensure the chassis mounting footprint and quick connect terminal spacing match the available panel space and wiring harness constraints. Validate that the 6 A current rating accommodates peak load currents without thermal degradation.

Part Context

This part belongs to the Schurter power line filter module series, which offers various configurations for AC power line protection. The 5500 series typically includes options for different current ratings and stage configurations to suit diverse electronic equipment needs.

Replacement Considerations

Consult the official Schurter replacement guide or datasheet for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' filters due to potential differences in inductance values, leakage current limits, and physical mounting dimensions.
